Ultra-Collapsible Bund Ultimate Model

Description

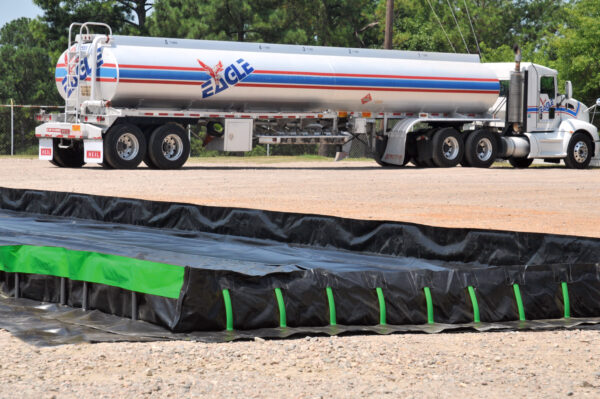

The Ultra-Collapsible Bund – Ultimate Model offers a smart, cost-effective solution for managing leaks and spills during equipment maintenance, drum transport, or temporary storage. Featuring a unique “living hinge” design, this bund allows vehicles and equipment to drive in and out without manual adjustment—delivering quicker, safer, and more efficient spill containment.

Key Features

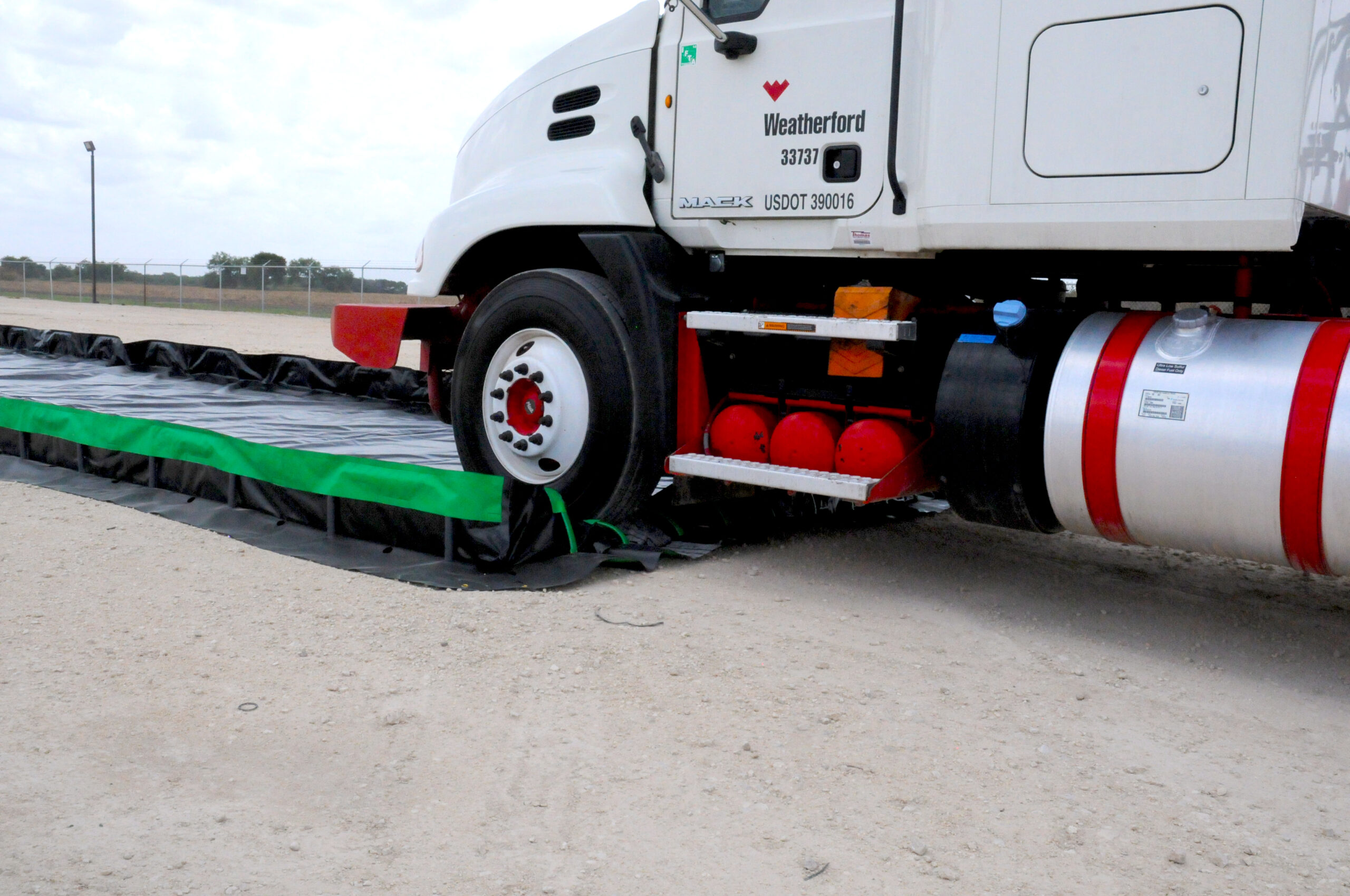

1. Hands-Free Entry & Exit: End walls flex under the weight of vehicles and automatically return to position—no need for manual lifting or repositioning.
2. Innovative Living Hinge Design: Prevents damage to the bund walls during drive-in and drive-out use, ensuring long-lasting performance.
3. Fast Setup & Easy Pack-Down: Sidewalls are supported by PVC frames with swivel feet, allowing for quick assembly and compact storage or transport.
4. Tough, Chemical-Resistant Build: Made from Copolymer 2000™ and other rugged materials for outstanding chemical resistance and durability in harsh outdoor environments.
5. Versatile Containment Options: Suitable for spills from drums, IBCs, frac tanks, maintenance vehicles, and other large containers.

Applications:

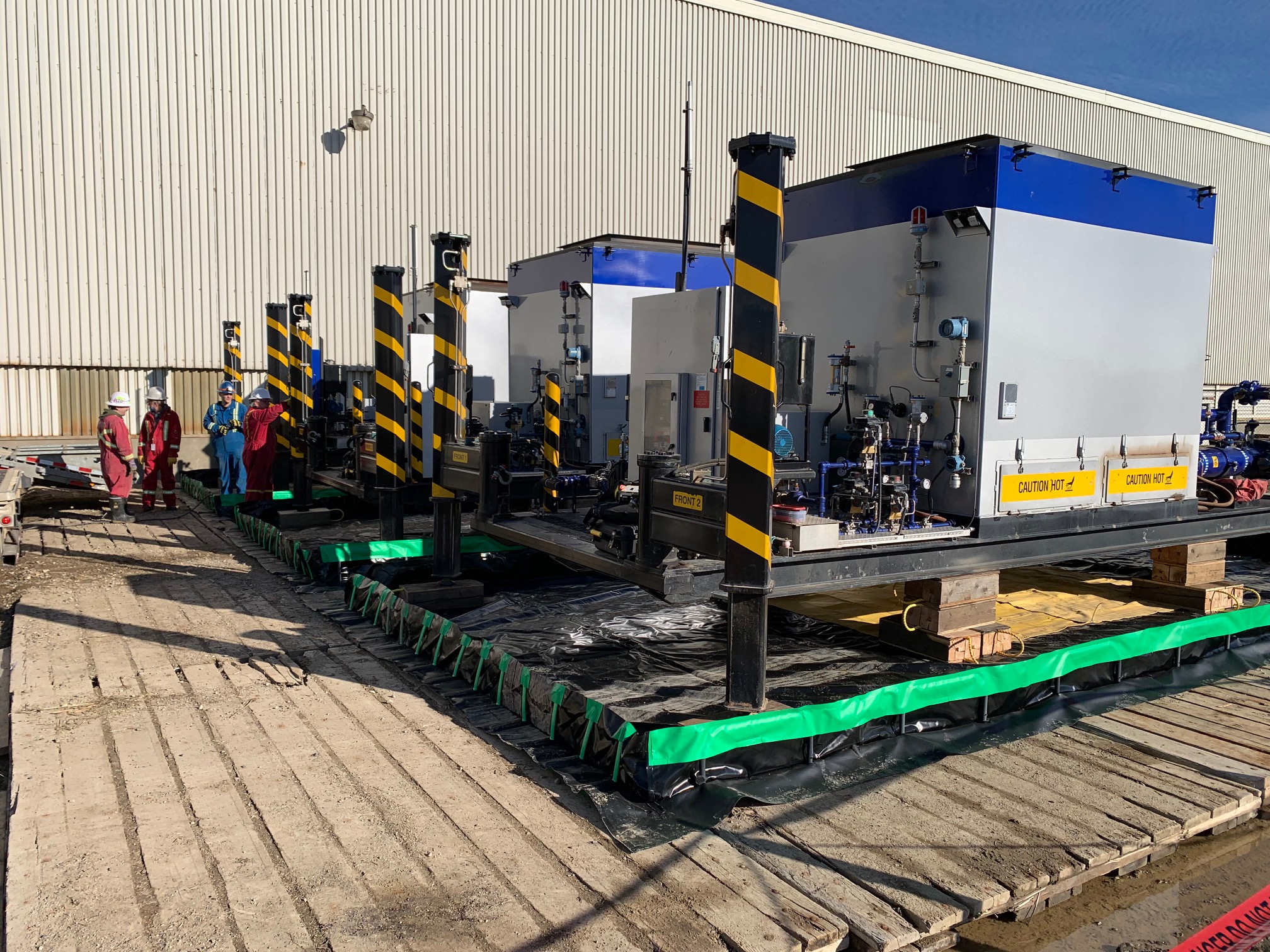

• Containment for frac tanks, ISO containers, and chemical storage units

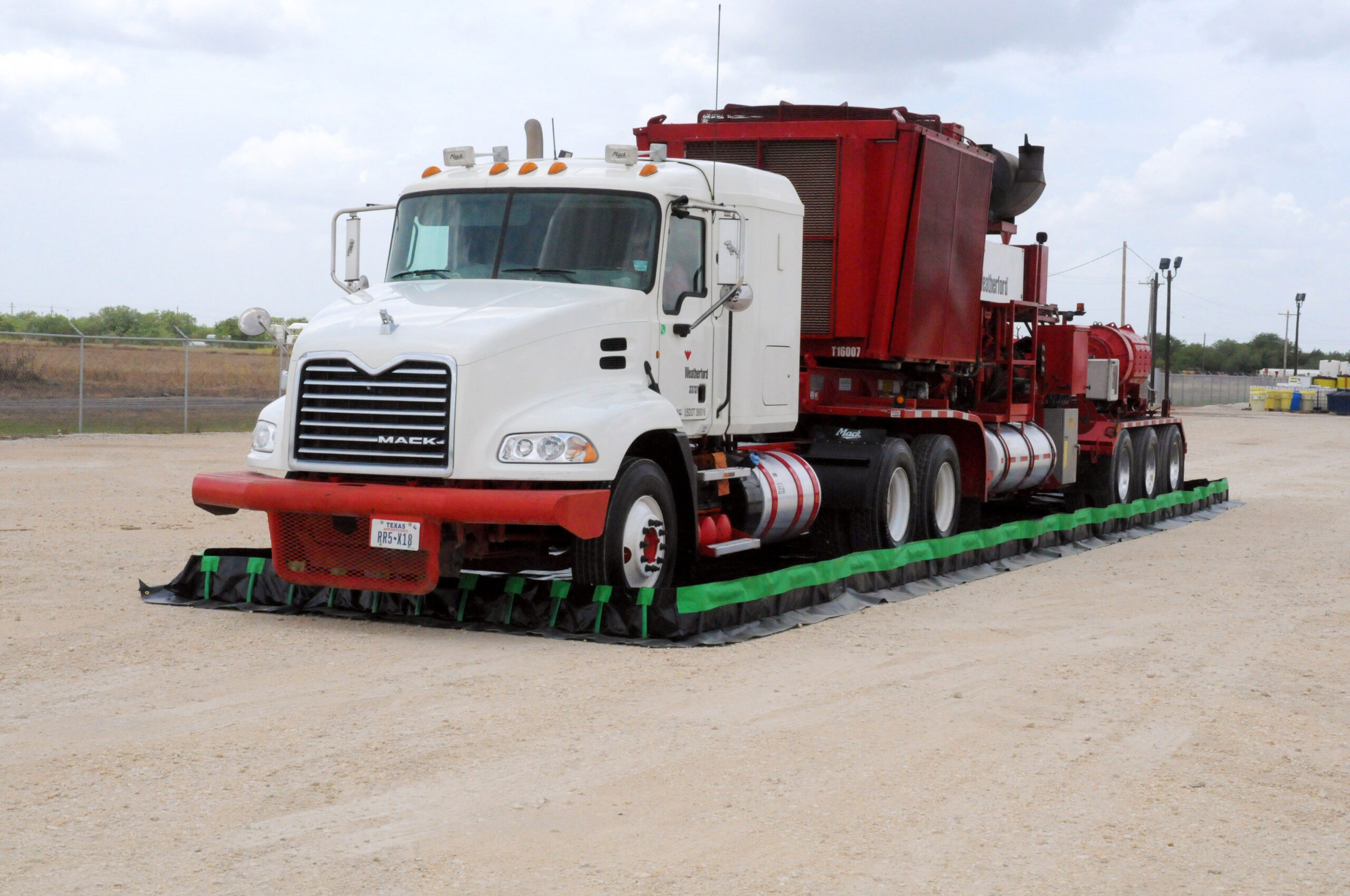

• Temporary bunding for plant and equipment during servicing or operation
• Bunded storage for drums, IBCs, and shipping containers
• Emergency or mobile spill response in remote or short-term locations

Frequently Asked Questions:

1. What is the operating temperature range for the Ultra-Containment Bunds? PVC:  Max 65°C, Min:  -28°C Copolymer-2000:  Max 71°C, Min:  -31°C
2. What is the density of the materials used? 850gsm
3. What if I need to use the Ultra-Containment Berm with a chemical that is not listed in the compatibility guide? If the chemical is not listed in the guide, chances are that the chemical has not been tested with the material.  If we cannot get a definitive answer from our engineering staff, we can send a testing kit to you for a 30-day immersion test.
4. Can custom-sized Ultra-Containment BUNDS be ordered? Contact our team for more information.
5. What about custom heights? Yes. Contact our team for more information
6. What is the optional ground tarp for? The ground tarp is a layer of material that is placed under the Ultra-Containment Bund to prevent any damage from rocks or other debris on the ground. First, the area is cleared of any rocks or debris, and then the ground tarp is laid down followed by the containment berm. This helps ensure that any spills or leaks are contained and don’t cause harm to the environment.
7. How do I know what size ground tarp to order? For smaller bunds, we recommend a 3m x 3m ground tarp. For larger bunds, you’ll need to add an extra meter to both the length and width dimensions of the berm. For example, if you have a 3m x 18m containment bund, you’ll need a 4m x 19m ground tarp.
8. What are the track belts for? Track belts are heavy-duty strips of reinforced PVC that protect the berm from wear and tear caused by vehicles driving in and out. This extends the life of the product.
