Ultra-Drain Guard Reusable

(inc. GST)

Fast Dispatch
Click & Collect
Secure Payment

Description

Heavy-Duty Sediment Control for Construction and High-Erosion Areas

The Ultra-Drain Guard Reusable Model is engineered to capture large volumes of sediment in high-erosion areas such as construction sites, earthworks, and infrastructure zones. Designed for use in stormwater drains and catch basins, this reusable drain guard effectively prevents silt, soil, and debris from entering the stormwater system — keeping your site compliant and environmentally responsible.

Key Features

High-capacity sediment collection – Holds up to 226kg of soil, sand, and sediment.
Rugged polypropylene design – Built for repeated use; rinse and reinstall.
Large accumulation pocket – 914mm deep design maximises sediment capture.
Easy installation and removal – Can be lifted by backhoe, forklift, or other machinery.
Optimised for construction sites – Ideal for areas with frequent heavy runoff.
Material: High-flow woven polypropylene for reliable drainage while trapping solids.

Common Applications

Civil construction sites
Roadwork zones
Excavation areas
Building developments
Sites with high erosion or loose soil
Temporary sediment control in storm drains

Product Variants

PRODUCT CODE	DESCRIPTION	LENGTH (m)	WIDTH (m)	HEIGHT (m)
CHU9845	Ultra-Drain Guard Reusable – Regular Flow, 8 Overflow Ports	0.9	0.9	0.9
CHU7154	Ultra-Drain Guard Reusable – Regular Flow, 8 Overflow Ports	1.2	0.9	0.9
CHU7155	Ultra-Drain Guard Reusable – Regular Flow, 8 Overflow Ports	1.2	1.2	0.9

Not the product you are looking for? Check our Stormwater Management range here

Downloads

FAQs

Why would I choose the Ultra-Drain Guard, a Reusable Model, over another model?

Because of its extraordinary capacity (up to 226kg), the reusable model is an excellent choice where the potential for sediment, sand, soil, and dirt is great and there is little or no concern for capturing hydrocarbons.  For this reason, the Ultra-Drain Guard, Reusable Model, is often used on construction sites.

Two hundred and twenty-six kilograms is a lot of weight. Will the grate be able to hold the Ultra-Drain Guard in place with that kind of load?

This will be dependent from catch basin to catch basin depending on the design, weight, and size of the grate, the fit of the grate and other factors.  However, it can and has been done.  For added security, rebar can be inserted into the removal flap pockets and left in place (these will be necessary during removal of the Ultra-Drain Guard).

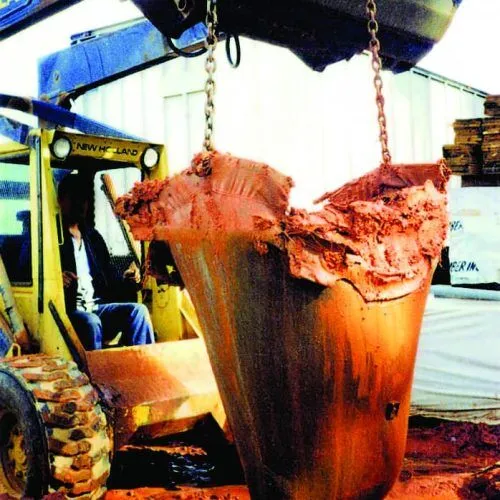

How am I supposed to remove the Ultra-Drain Guard when it is full?

Once rebar has been inserted into the removal flap pockets, the unit can either be removed by hand (at least two people) or, for larger loads, a backhoe, forklift or other equipment should be used.

Why doesn’t this catch basin insert absorb oil and other hydrocarbons like other Ultra-Drain Guards?

In order to be able to contain very large amounts of sand, silt, and sediment, it is necessary to use a polypropylene material to make the Ultra-Drain Guard Reusable Model.  While this is obviously a very strong, durable and heavy-duty material it does not have the oil-absorbing capabilities of the geotextile material that is used for most of our other Drain Guard models.

Why Use the Ultra-Drain Guard Reusable Model?

While other drain guards may focus on hydrocarbon capture, the reusable model is purpose-built for high-volume sediment retention. Its ability to contain significant amounts of dirt and debris makes it a dependable solution for regulatory compliance, site cleanliness, and stormwater protection.
