Description

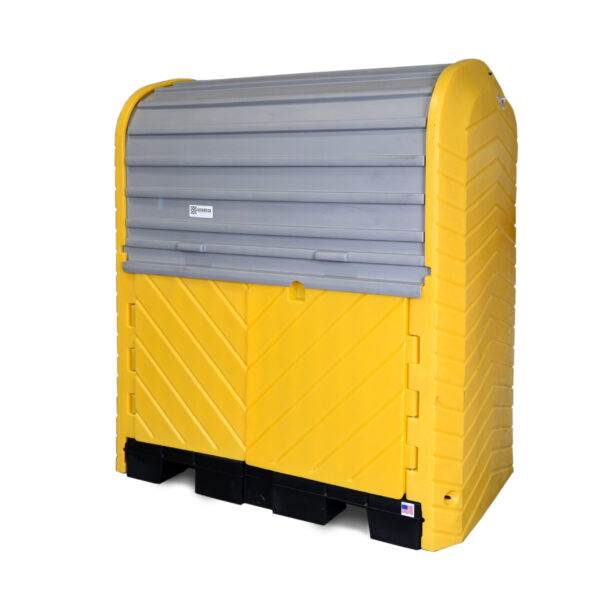

The Ultra-Hard Top Plus 2-Drum Spill Pallet offers reliable outdoor containment for one or two 205-litre drums. Built for safety, durability and ease of use, it protects against spills, weather, and unauthorised access.
Key Features
- Ample Headroom: 603mm internal height fits rotary drum pumps and large funnels without removal.

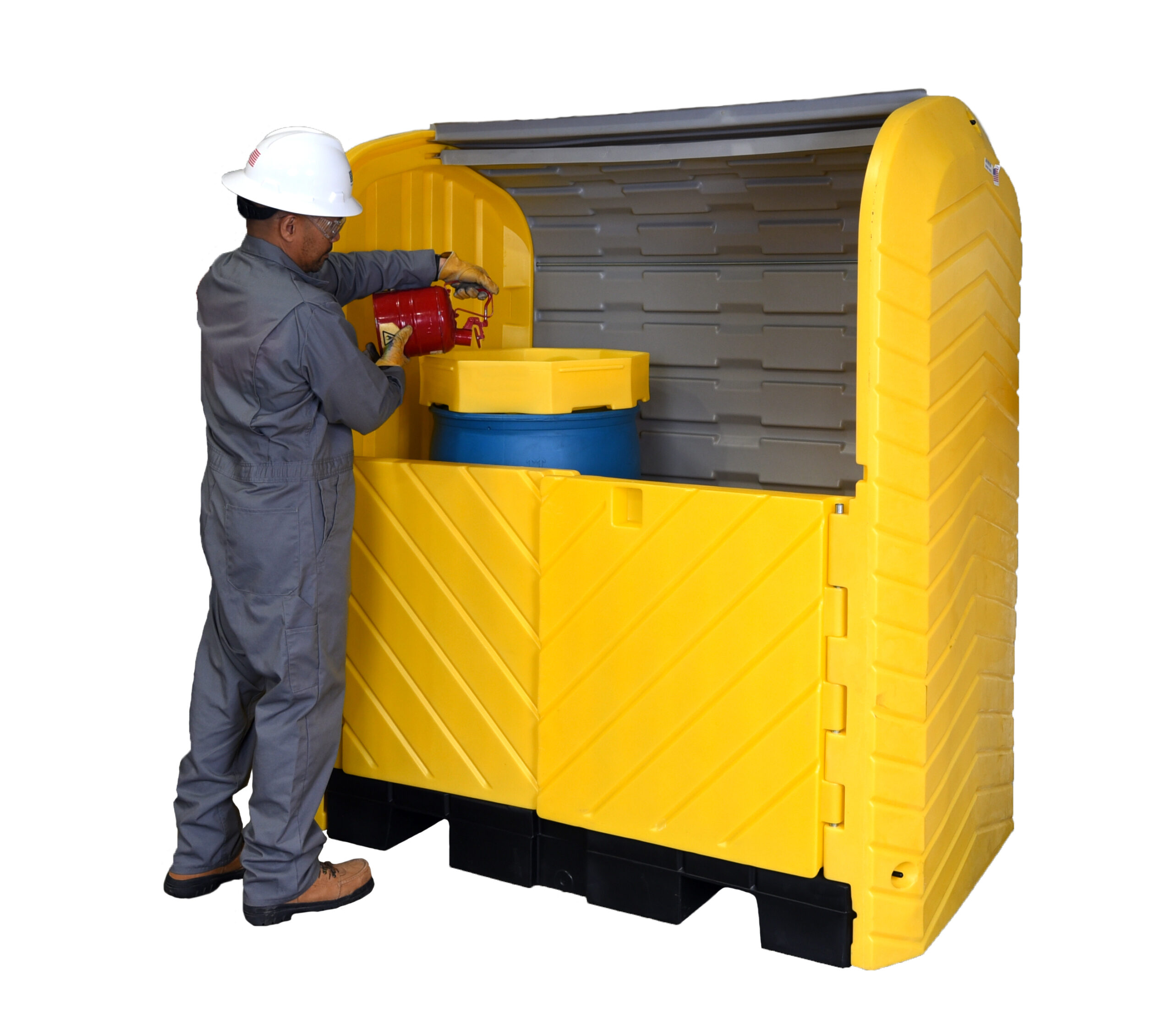

- Low Profile Pallet: 222mm height keeps funnels at an ergonomic level for safe pouring.
- Heavy-Duty Build: Made from 100% UV-stabilised polyethylene—rustproof, corrosion-resistant, and long-lasting.

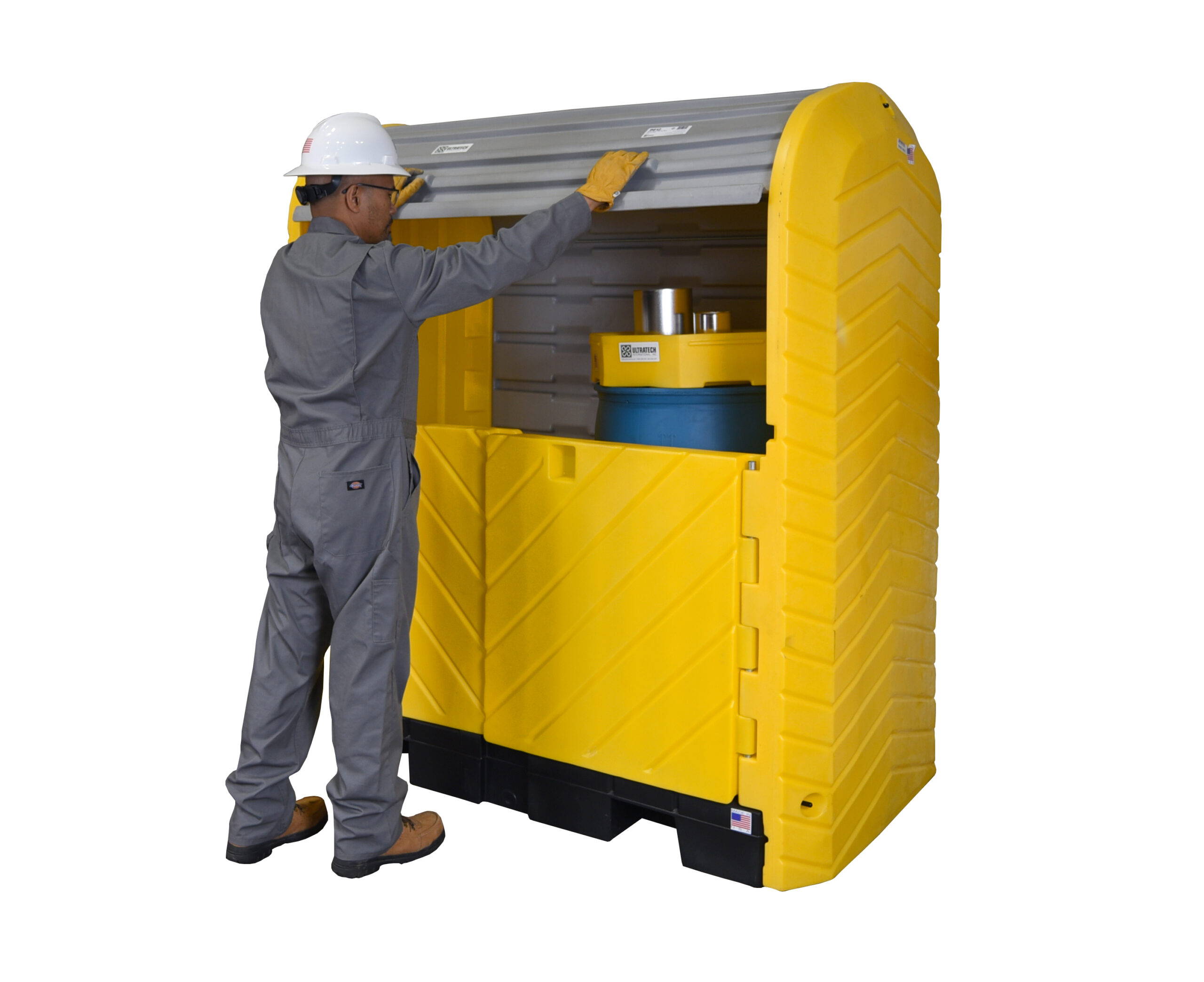

- Full Access Doors: Roll-top and swing-out doors make loading and unloading easy.

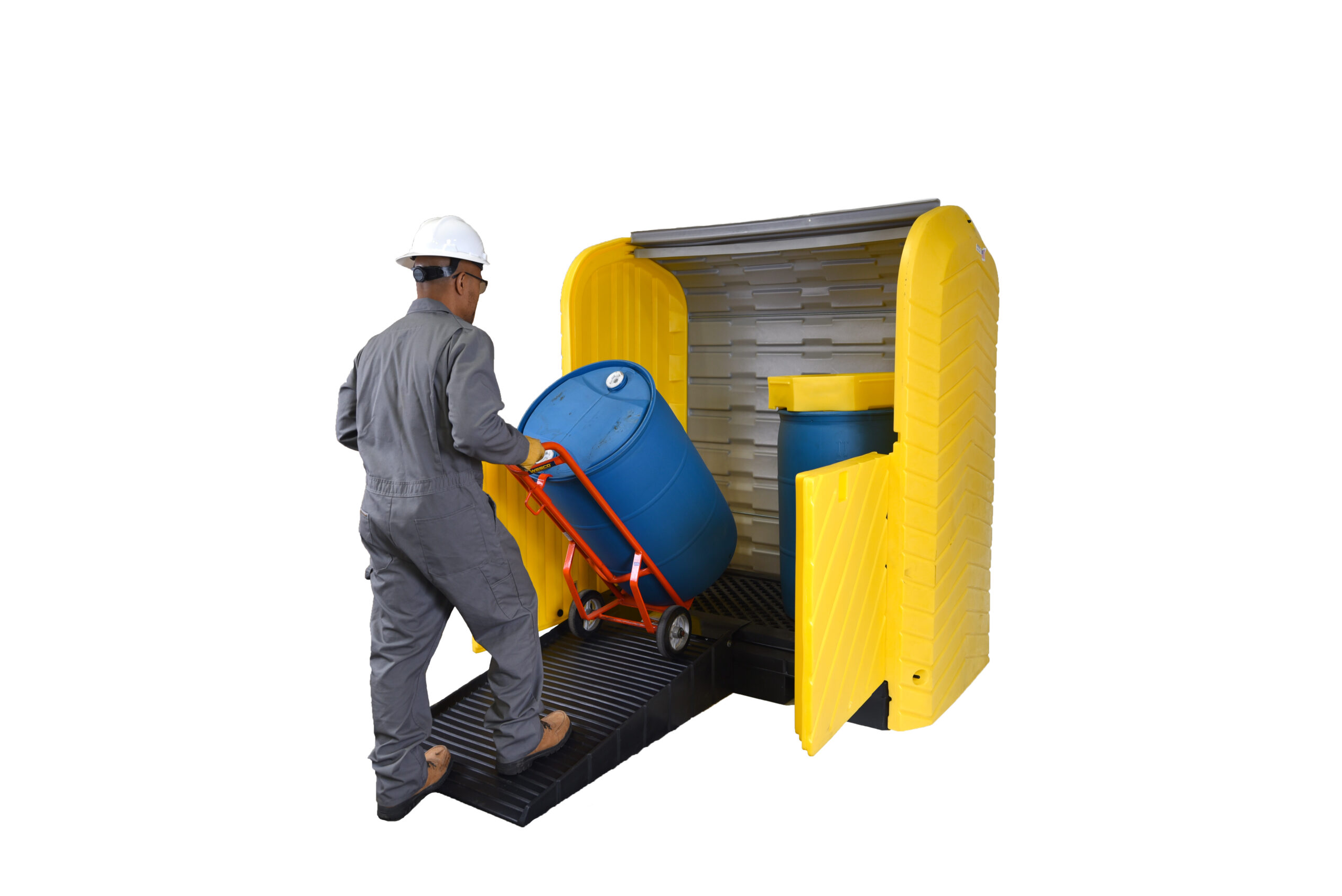

- Integrated Ramp Storage: Optional ramp with anti-slip surface stores neatly inside the unit—even when loaded.
- User-Friendly Design: Access drums easily from waist level—no need to bend or reach low.
- Lockable & Forkliftable: Secure with a standard padlock and safely move with forklift while loaded.
Application
- Industrial Sites – Compliant storage for hazardous materials.
- Warehouses – Safe, compact drum storage indoors or outdoors.
- Environmental Services – Spill containment during transport and storage.
- Construction Sites – Keeps oils, fuels, and chemicals secure on site.
PRODUCT CODE | DESCRIPTION | LENGTH (mm) | WIDTH (mm) | HEIGHT (mm) | WEIGH CAPACITY (kg) | CONTAINMENT CAPACITY (L) | WEIGHT (kg) |
CHU9612 | Hard Top 2-Drum Plus, No Drain | 1708 | 1047 | 1879 | 2041 | 250 | 117 |
CHU9613 | Hard Top 2-Drum Plus, With Drain | 1708 | 1047 | 1879 | 2041 | 250 | 117 |
Warranty:
- Covered by the Best Warranty in the Industry: Enjoy peace of mind with our five-year warranty that protects against any material or workmanship defect
Frequently Asked Questions:

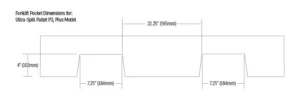

- What are the dimensions of the forklift pockets?
- Is there access to the drums from both sides of the Ultra-Hard Top 2-Drum Plus? No, there is only access from one side via either the roll-up door and/or the “barn doors”.
- Does the Ultra-Hard Top 2-Drum Plus come with a ramp? No, the ramp (Product CHU0676) is optional.
- Is the Ultra-Hard Top 2-Drum Plus combustible? Will it burn or melt? The Ultra-Hard Top 2-Drum Plus is made of polyethylene (LLDPE) so in the event of a fire the unit will melt. It is not intended to be used in place of a safety cabinet.
- Is the Ultra-Hard Top 2-drum Plus waterproof? No, the spill pallet is not completely waterproof. It is more accurately described as weatherproof. In other words, in standard weather conditions, your drums and/or containers should be protected and water gathering in the pallets is not a concern. However, during very gusty conditions or very heavy rainfall, some water may get into the unit. It is good practice to inspect the interior of the hard top after any severe weather.
- Can the ramp fit in the Ultra-Hard Top 2-Drum Plus while not in use? (with 2 drums in there) Yes, there is enough room inside the hard top for two drums and the ramp.
- What are the inside dimensions of the Ultra-Hard Top 2-Drum Plus? At its peak (the top is sloped) the height is 1581mm the inside width is 844mm and the inside length is 1597mm.
- How long can I expect my UltraTech polyethylene (PE) spill containment product to last outdoors? UltraTech’s general response to this question is at least ten (10) years. You can expect longer, but the actual life is dependent on several factors. UltraTech has been making outdoor spill containment products since 1993. We have a good sense of realistic life expectancy based on all those years of experience. UltraTech uses the highest-rated UV package in the resin formulation it uses to create the longest outdoor life available for a PE product.
- What are the factors that affect the life of a PE spill containment product outdoors? The most important environmental factors are ultraviolet exposure and chemical exposure. In the absence of chemical compatibility concerns (determined by the UltraTech compatibility chart for PE products), the next most important factor for outdoor, polyethylene spill containment products will be ultraviolet irradiation (UV) exposure. The most important factors regarding UV are thickness, UV Inhibitor (UVI) content, and pigment colour, type, and concentration. Ultraviolet irradiation exposure causes the molecular structure and bond changes that result in the embrittlement of PE. Very thin PE can become brittle and fracture in less than a year (think contractor’s PE Visqueen sheeting). Thicker parts take longer to break down. The addition of UV Inhibitors to the PE allows it to sustain more UV exposure without breaking down. Darker pigments, inorganic pigments, and higher concentrations of pigments also individually and collectively will give PE a longer life before appreciable UV damage occurs.
- What is the longest life of an outdoor spill containment product you have seen? There is an outdoor spill containment product that has been in use in northeast Florida since 1986 and is still in active use today. UltraTech suggests its Ultra-Track Pans, used for outdoor railroad track spill containment, have a minimum of a twenty-year life.
- What type of drain is used for these pallets? The standard drain is a threaded hole in the sidewall with a 19mm polyethylene plug with NPT threads installed.
Videos
Downloads
- Download Ultra-Hard Top Plus 2-Drum Spill Pallet Datasheet
- Download Assembly Instruction (NOTE: Unless otherwise specified, the Ultra-Hard Top Plus 2-Drum Spill Pallet ships completely assembled.)
- Download Loading Ramp Datasheet
- Download Loading Ramp Assembly Instructions
- Download Spill Pallet 2-Drum Comparison
- Download Chemical Compatibility Guide for Moulded Polyethylene
- Download Outdoor Spill Containment Product Life Expectancy
- Download Maintenance and Care for Polyethylene Products
