Ultra-IBC Hard Top
$9,266.40 (inc. GST)
- Fast Dispatch
- Click & Collect
- Secure Payment
Description
Weatherproof, secure IBC spill pallet for outdoor storage

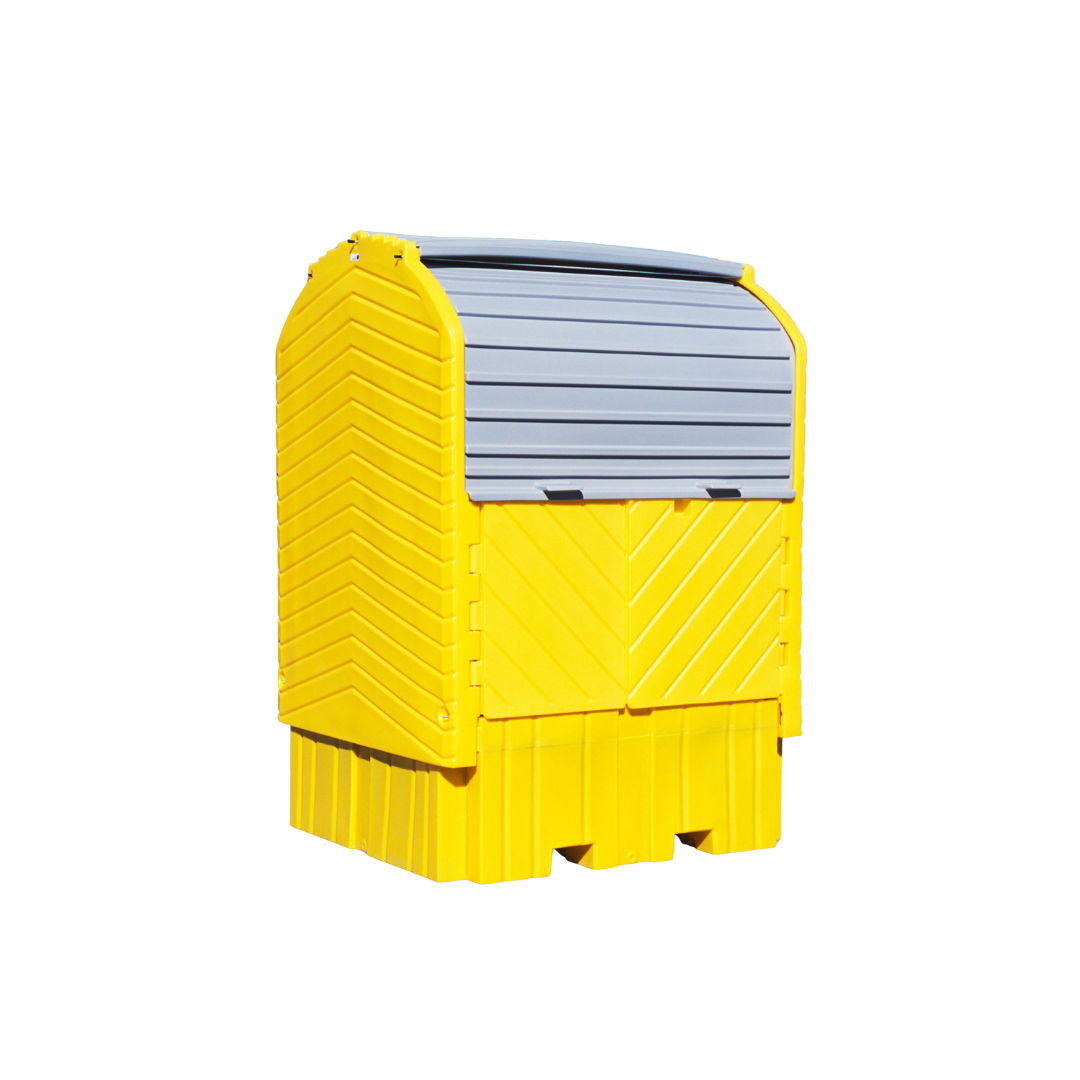

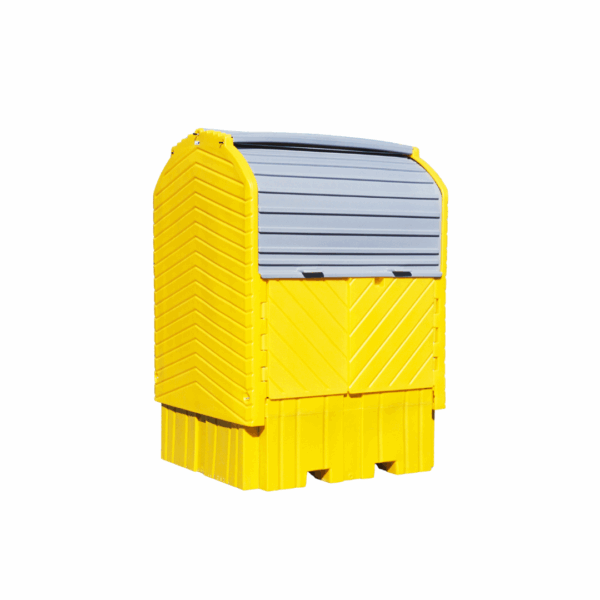

The Ultra-IBC Hard Top Spill Pallet is engineered for safe and compliant outdoor storage of IBC tanks. Designed with a secure roll-top cover and bunded sump, it protects valuable liquids from leaks, spills, and weather exposure. Constructed entirely from corrosion-resistant polyethylene, this forkliftable, lockable unit is ideal for industrial sites needing long-term, outdoor IBC containment.
Key Benefits of Our Outdoor IBC Pallet
- Fully enclosed outdoor protection – Shields IBCs from rain, sunlight, and contamination.
- Compliant spill containment – 1381L sump helps meet EPA, SPCC, and environmental regulations.
- Lockable and tamper-resistant – Keeps hazardous or valuable contents secure.

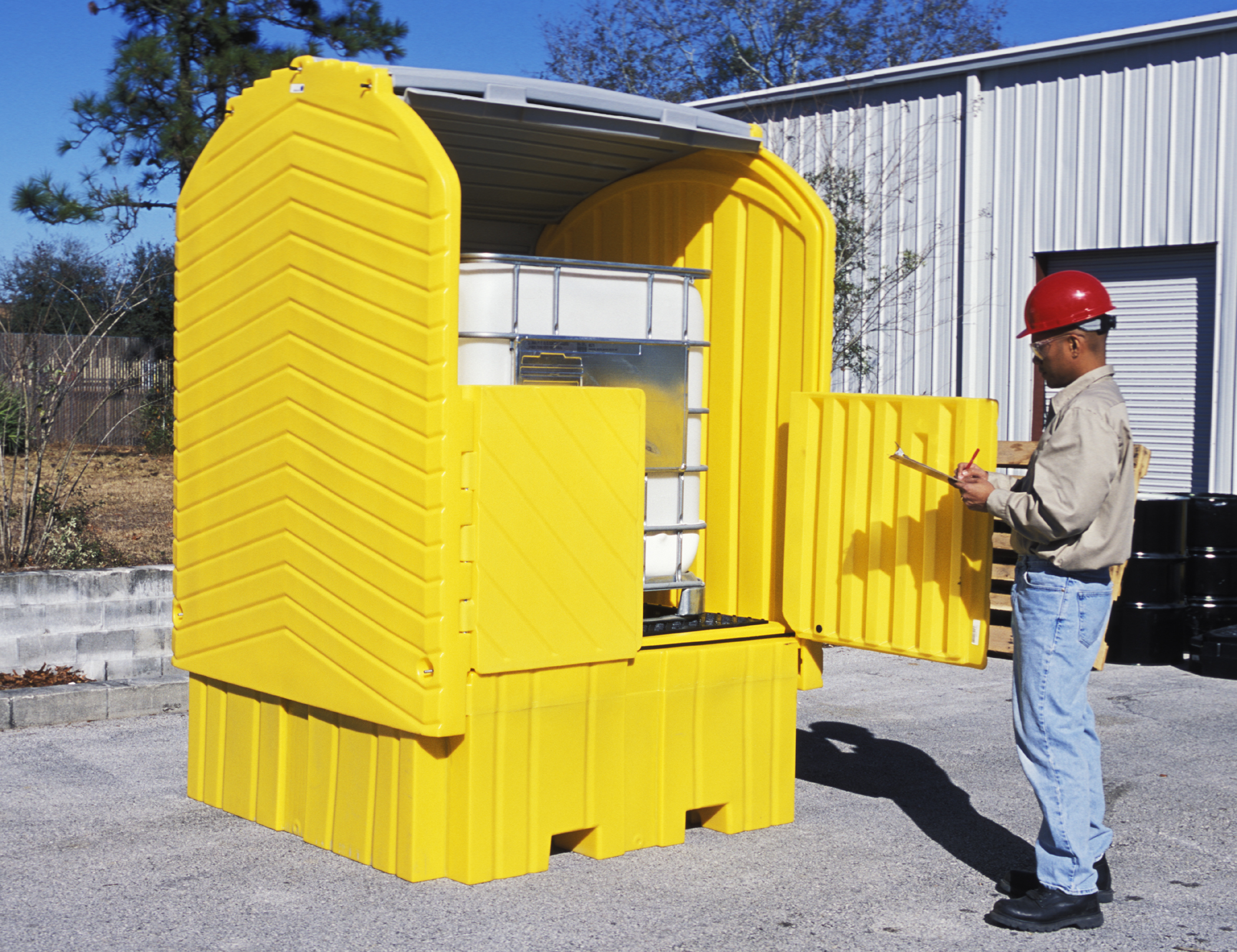

- Easy access design – Roll-top and swing-out doors allow fast and safe loading or dispensing.
- Rugged polyethylene construction – UV-stabilised and chemical-resistant for long-term outdoor use.

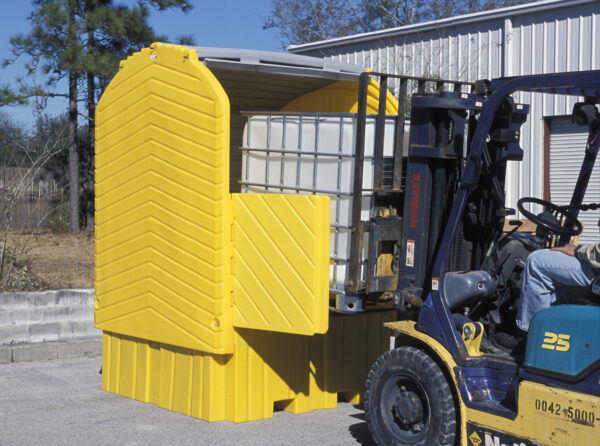

- Forklift compatible – Easily relocate or reposition on site.
- Easy maintenance – Internal columns are removable for cleaning and inspection.
Technical Specifications
- Material: UV-stabilised LLDPE
- Sump Capacity: 1,381 litres
- Load Capacity: 3,855 kg (UDL)
- Dimensions: 1574mm x 1574mm x 711mm
- Deck Size: 1346mm L x 1346mm W
- Design Feature: “Cross of Life” structural support system
Built for Long-Term Performance
The Cross of Life design reinforces the pallet’s structure under heavy loads. As weight increases, the design pulls the sides inward, preventing sagging and maintaining integrity over time.
Product Variants
| PRODUCT CODE | DESCRIPTION | LENGTH (m) | WIDTH (m) | HEIGHT (m) | CONTAINMENT CAPACITY (L) |
| CHU1162 | IBC Hard Top | 1.6 | 1.5 | 2.4 | 1,362 |
Warranty & Support
Covered by a five-year warranty, this pallet is protected against defects in materials and workmanship. Our team is available to assist with installation, accessories, and compliance questions.
Want more options? Check our Spill Pallet Range Here
Downloads
FAQs
How large of an IBC can I store on the Ultra-IBC Hard Top?
The standard dimensions for a typical plastic IBC in Australia are as follows:
- Length: 1200 mm
- Width: 1000 mm
- Height: 1160 mm
These dimensions result in an IBC capacity of 1000 litres.
Is the Ultra-IBC Hard Top forkliftable?
Yes, there are forklift pockets on two sides of the pallet.
Can I move this hard top with an IBC inside?
No, we do not recommend moving loaded hard tops.
Can the Ultra-IBC Hard Top support an IBC that has pedestal posts for legs, or just flat bottom IBCs?
The pallet has a 3855kg capacity. This is for uniformly distributed loads. An IBC that is supported by a pedestal post or feet focuses all of its weight on those feet. If the dimensions of those feet are not large enough to properly displace the weight on the spill pallet’s grating, it could be an issue. As a precaution, steel plates (at least 304mm x 304mm) can be used under the feet in order to more evenly distribute the weight over a greater area.
Is the Ultra-IBC Hard Top waterproof?
No, the spill pallet is not completely waterproof. It is more accurately described as weatherproof. In other words, in standard weather conditions, your drums and/or containers should be protected and water gathering in the pallets is not a concern. However, during very gusty conditions or very heavy rainfall, some water may get into the unit. It is good practice to inspect the interior of the hard top after any severe weather.
Can the Ultra-IBC Hard Top be moved with a forklift while there is a full tank on top of it?
It is not recommended.
What is the outdoor life expectancy of the Ultra-IBC Hard Top?
Because of the different conditions and circumstances that a product like this is used under, it is impossible to put a number on a question like this. However, it is worth noting that (with the exception of a few pieces of hardware) the entire unit is made with polyethylene, which will not rust or corrode. In addition, we use a UV inhibitor to prevent degrading effects from sunlight. Finally, we offer the industry’s best warranty and will cover any material or workmanship defects for up to five years.
Is the IBC included?
The IBCs are NOT included. They are only used in our photographs to help convey the product’s application.
What type of drain is used for these pallets?
The standard drain is a threaded hole in the sidewall with a 19mm polyethylene plug with NPT threads installed.
If I don’t have a drain, then how am I supposed to clean up after a spill?
We recommend using a pump like the bladder pump (Product CHU2345) used with our Ultra-Spill Deck Bladder Systems. Click here to see a video of it in action.
How many Ultra-IBC Hard Tops can be put in a single stack for shipping? What other shipping information should I know?
A single IBC Hard Top ships on an oversized skid (1524mm x 1625mm), freight class 250 and NMFC 156600-3.
How long can I expect my UltraTech polyethylene (PE) spill containment product to last outdoors?
UltraTech’s general response to this question is at least ten (10) years. You can expect longer, but the actual life is dependent on several factors. UltraTech has been making outdoor spill containment products since 1993. We have a good sense of realistic life expectancy based on all those years of experience. UltraTech uses the highest-rated UV package in the resin formulation it uses to create the longest outdoor life available for a PE product.
What are the factors that affect the life of a PE spill containment product outdoors?
The most important environmental factors are ultraviolet exposure and chemical exposure. In the absence of chemical compatibility concerns (determined by the UltraTech compatibility chart for PE products), the next most important factor for outdoor, polyethylene spill containment products will be ultraviolet irradiation (UV) exposure. The most important factors with reference to UV are thickness, UV Inhibitor (UVI) content, and pigment color, type, and concentration. Ultraviolet irradiation exposure causes molecular structure and bond changes that result in the embrittlement of PE. Very thin PE can become brittle and fracture in less than a year (think contractor’s PE Visqueen sheeting). Thicker parts take longer to break down. The addition of UV Inhibitors to the PE allows it to sustain more UV exposure without breaking down. Darker pigments, inorganic pigments, and higher concentrations of pigments also individually and collectively will give PE a longer life before appreciable UV damage occurs.
What is the longest life of an outdoor spill containment product you have seen?
There is an outdoor spill containment product that has been in use in northeast Florida since 1986 and is still in active use today. UltraTech suggests its Ultra-Track Pans, used for outdoor railroad track spill containment, have a minimum of a twenty-year life.
Why Choose Akuna Services?
At Akuna Services, we deliver practical spill containment solutions that meet Australian standards. The Ultra-IBC Hard Top Spill Pallet combines durability, compliance, and affordability—making it a trusted choice for industrial sites, warehouses, and chemical storage facilities.
