Our services are designed to minimise the environmental footprint of your operations, lower costs associated with environmental remediation, and enhance your brand reputation through sustainable practices. We do this by implementing that optimise resource consumption, prevent pollution, and ensure compliance with environmental regulations.
Price available upon request
Important:Â Not suitable for containing liquids.

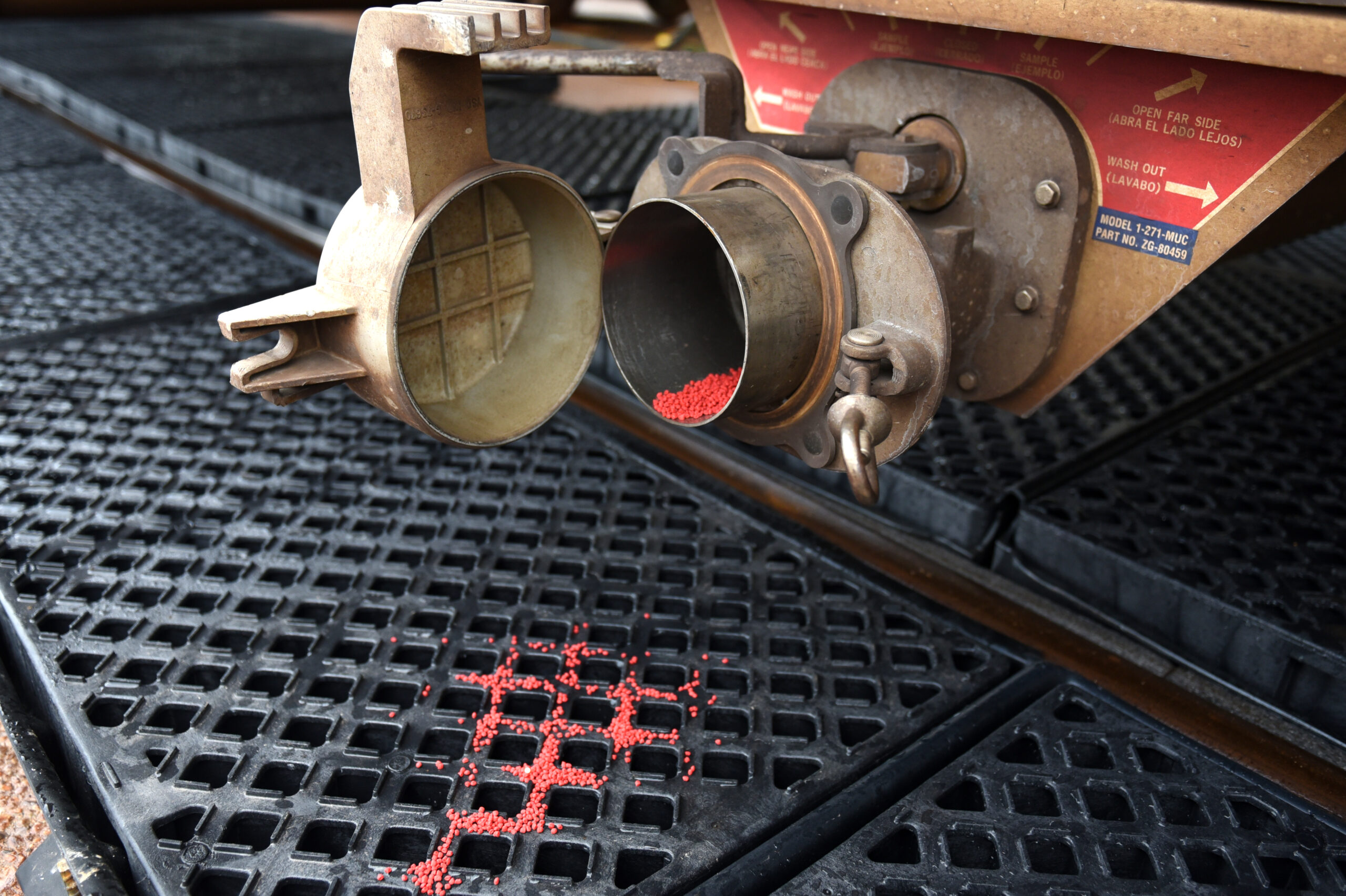

Effective Pellet Containment: Polyethylene gaskets seal the space between rails and pans to prevent pellet seepage.
Lightweight & Easy to Install: No need for forklifts or cranes. Quick installation with minimal tools and labour.
Durable Construction: Made from UV-inhibited polyethylene with an estimated service life of 20–30 years.
Low Maintenance: Rust- and corrosion-resistant materials withstand harsh outdoor conditions.
Slip-Resistant Surface: Textured pans and grates provide safe footing, even when wet or oily.

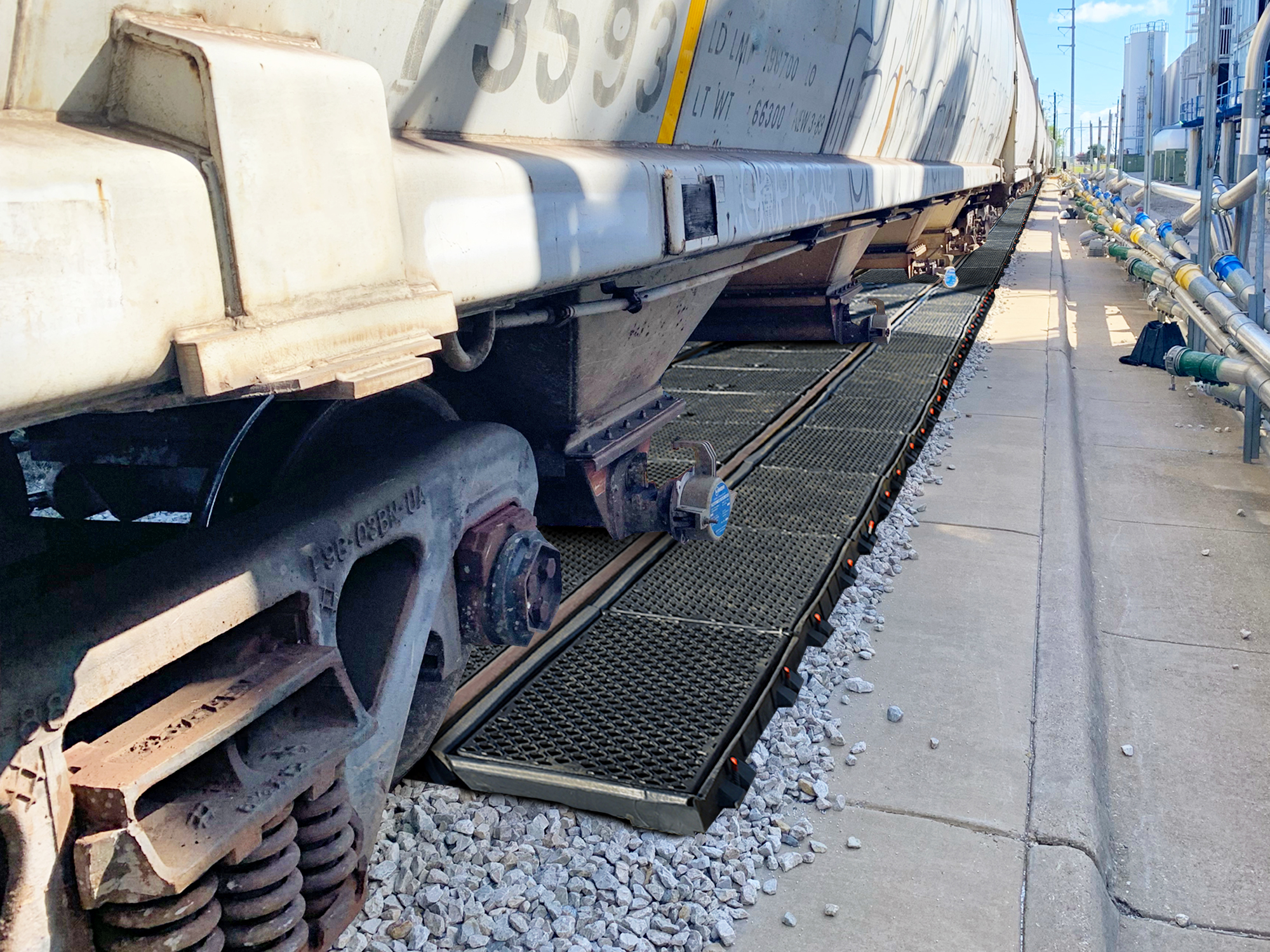

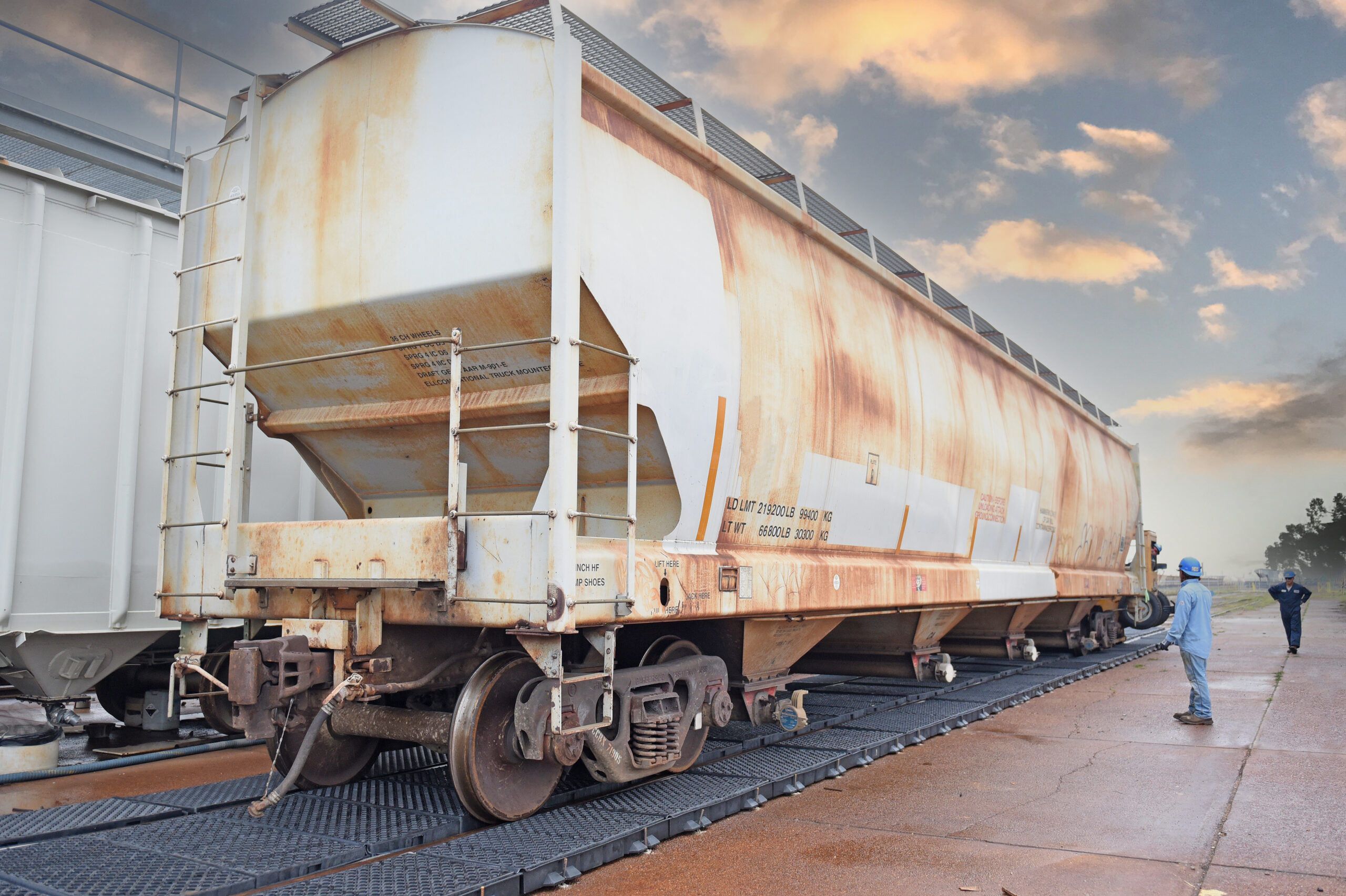

Rail yards and terminals unloading plastic resin or pellets
Manufacturing facilities receiving plastic raw materials
Environmental compliance operations targeting pellet loss prevention
Industrial sites aiming to reduce clean-up costs and avoid regulatory fines
| PRODUCT CODE | DESCRIPTION | LENGTH (mm) | WIDTH (mm) | HEIGHT (mm) | CAPACITY (L) | Â WEIGHT (kg)Â |

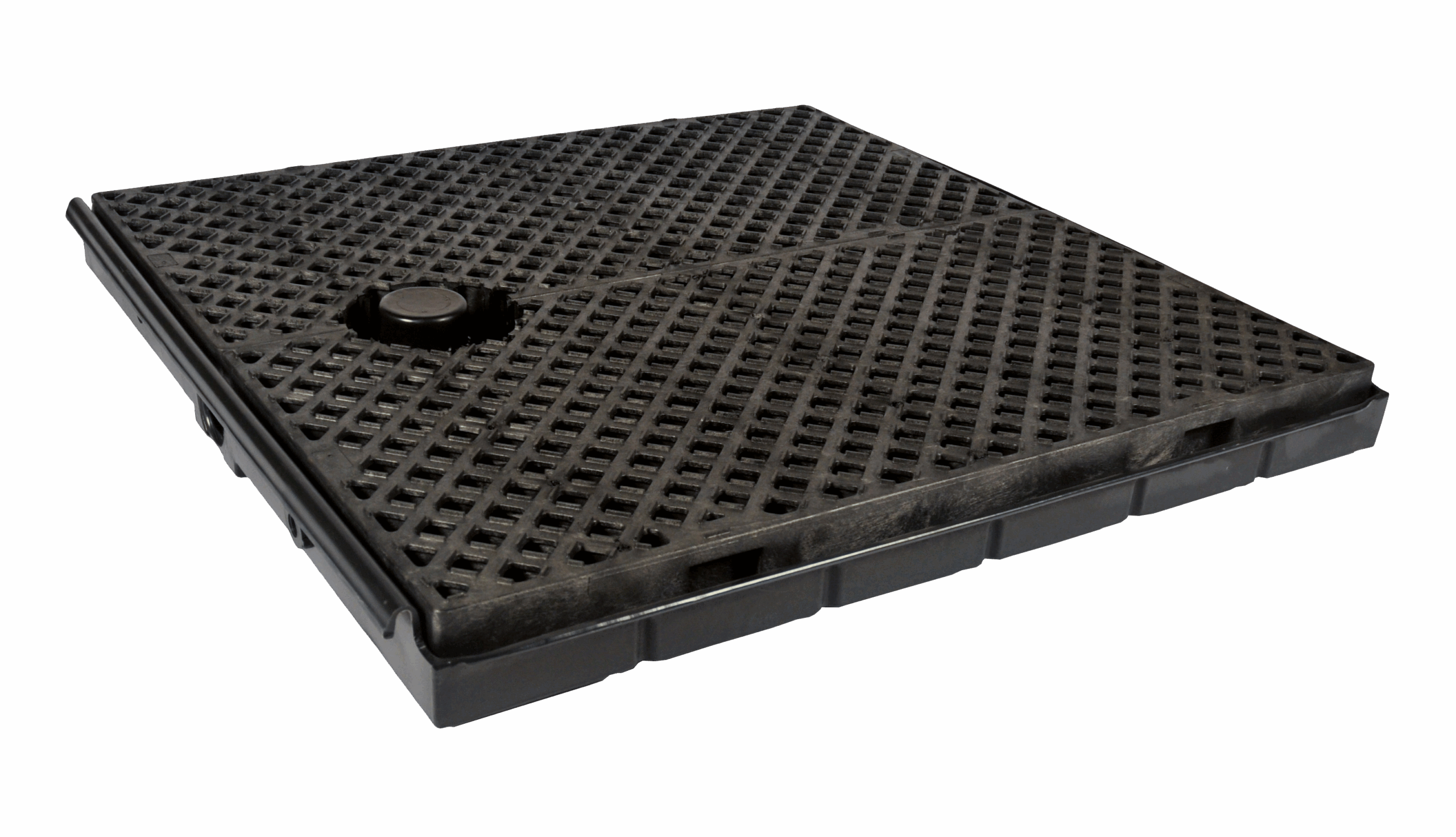

| CHU7560 | Center Pan with Grates | 1359 | 1359 | 152 | 250 | 51 |

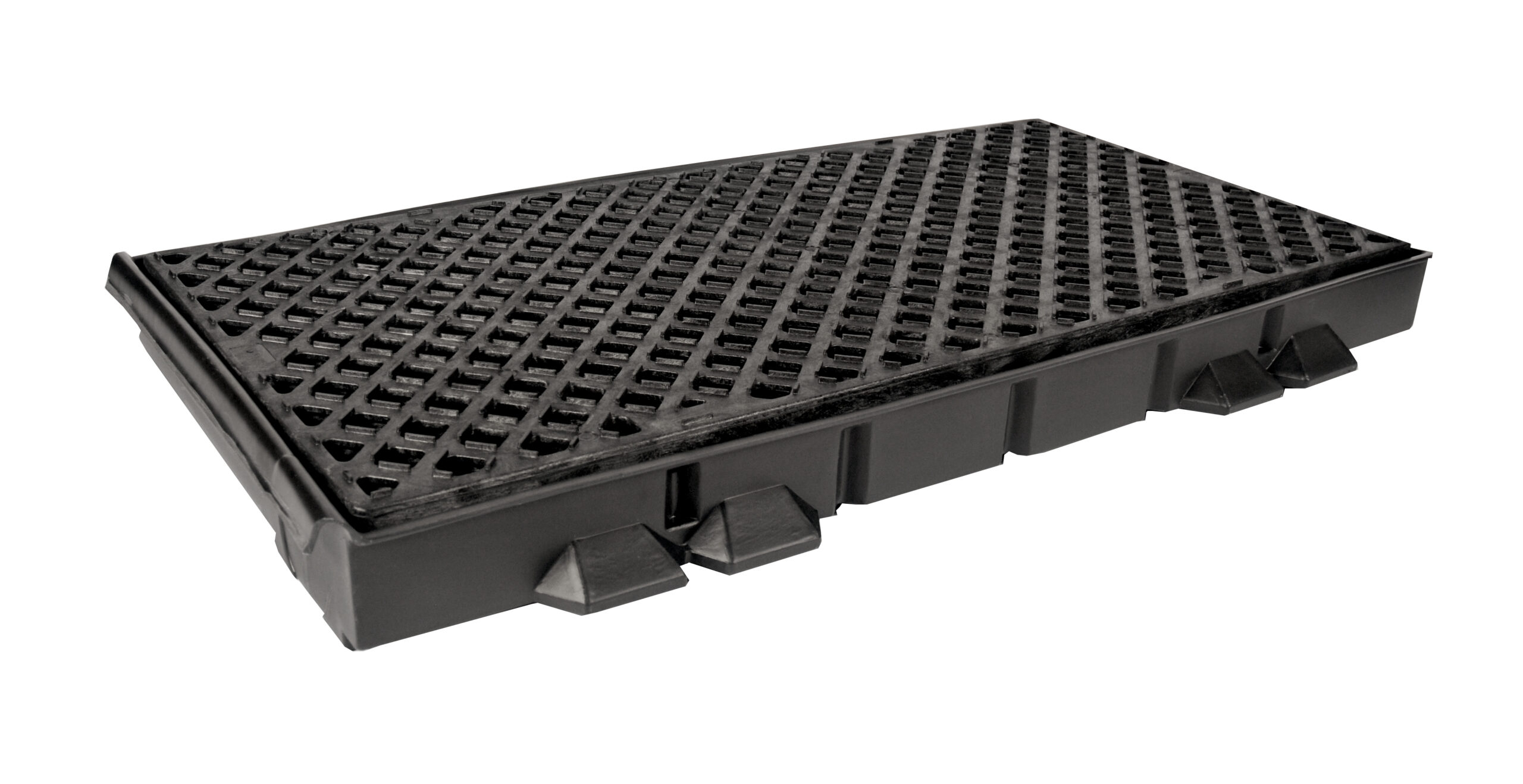

| CHU7562 | Side Pan with Grates | 1359 | 699 | 152 | 250 | 26 |
| CHU7570 | Pellet Deflector, 5-Pack | 406 | 1219 | n/a | n/a | 2 |
Each pan is fitted with a number of 76mm drains. Two in each of the standard pans, and three in each composite pan.
No, water will drain regardless of the amount of pellets that are contained. However, it is important (and not just for proper drainage) that any pellets that are contained by the pans be removed as soon as possible.
The installation process for either pan is relatively simple and requires only basic hand tools. Product specialists and our technical team are also available should you need further assistance. Please feel free to call them at 1300 912 949.
Basic tools that would be available in almost all workshops is all that is required for the installation. Some slightly more specialised tools may be needed for site preparation. Please see the installation instructions here for a complete list.
 Yes, while the Ultra-Pellet Pans are designed for a long-term installation, they can be removed if necessary.
The grating is required in the standard pans and recommended (but not necessary) for composite pans.
Not necessary but HIGHLY recommended. Without them, the pellets are very likely to bounce out of the pans and into the surrounding environment.
Without drains, they are not pellet pans. UltraTech’s other railroad containment products, the Ultra Pellet Pans, are essentially the sÂame as pellet pans but without drains so that they can be used to contain liquid leaks and spills.
 The drains in the Ultra-Pellet Pans are designed to capture pellets 1mm in diameter or large
Get in touch with our expert team and we will guide you through the process.
