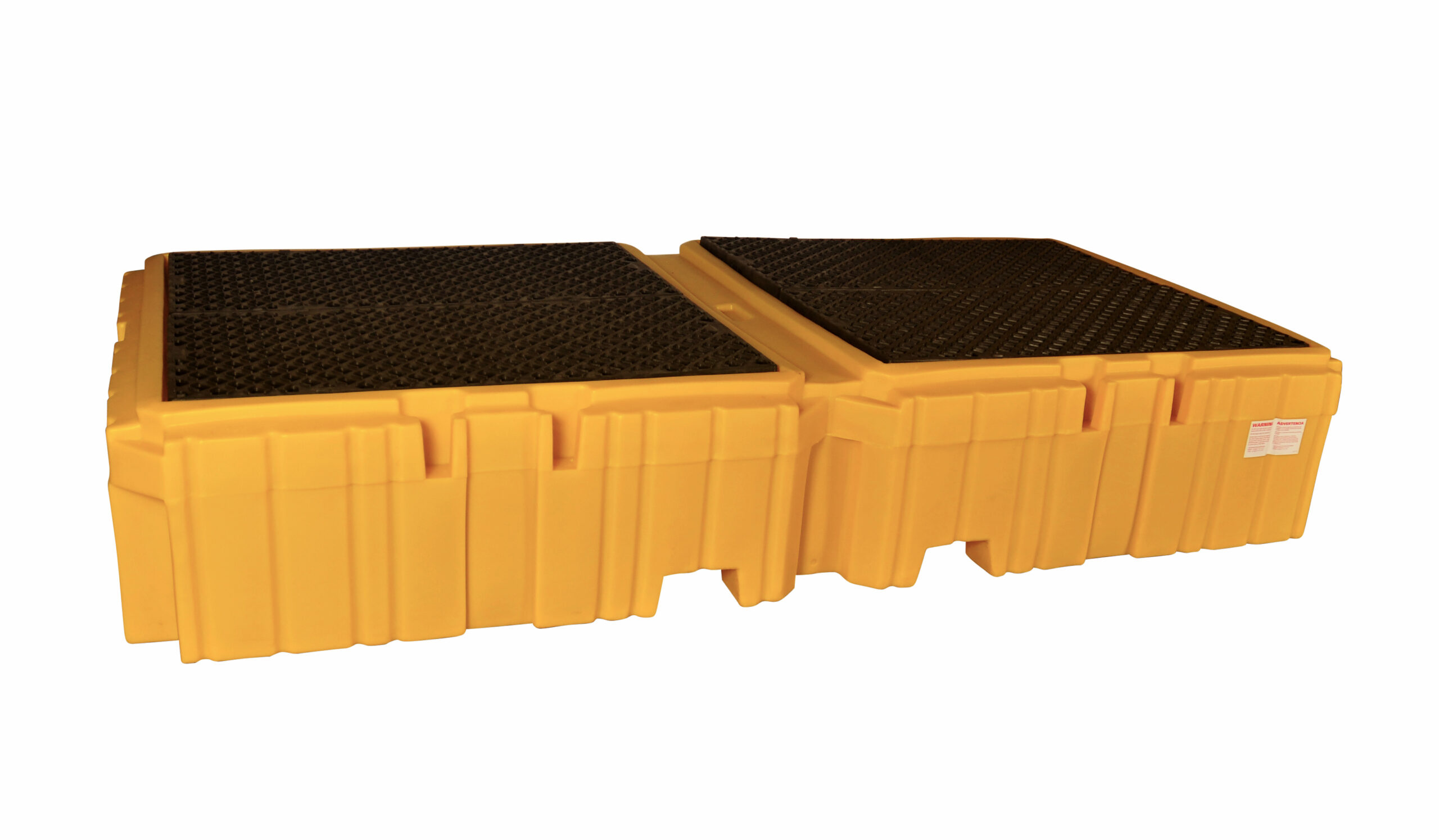

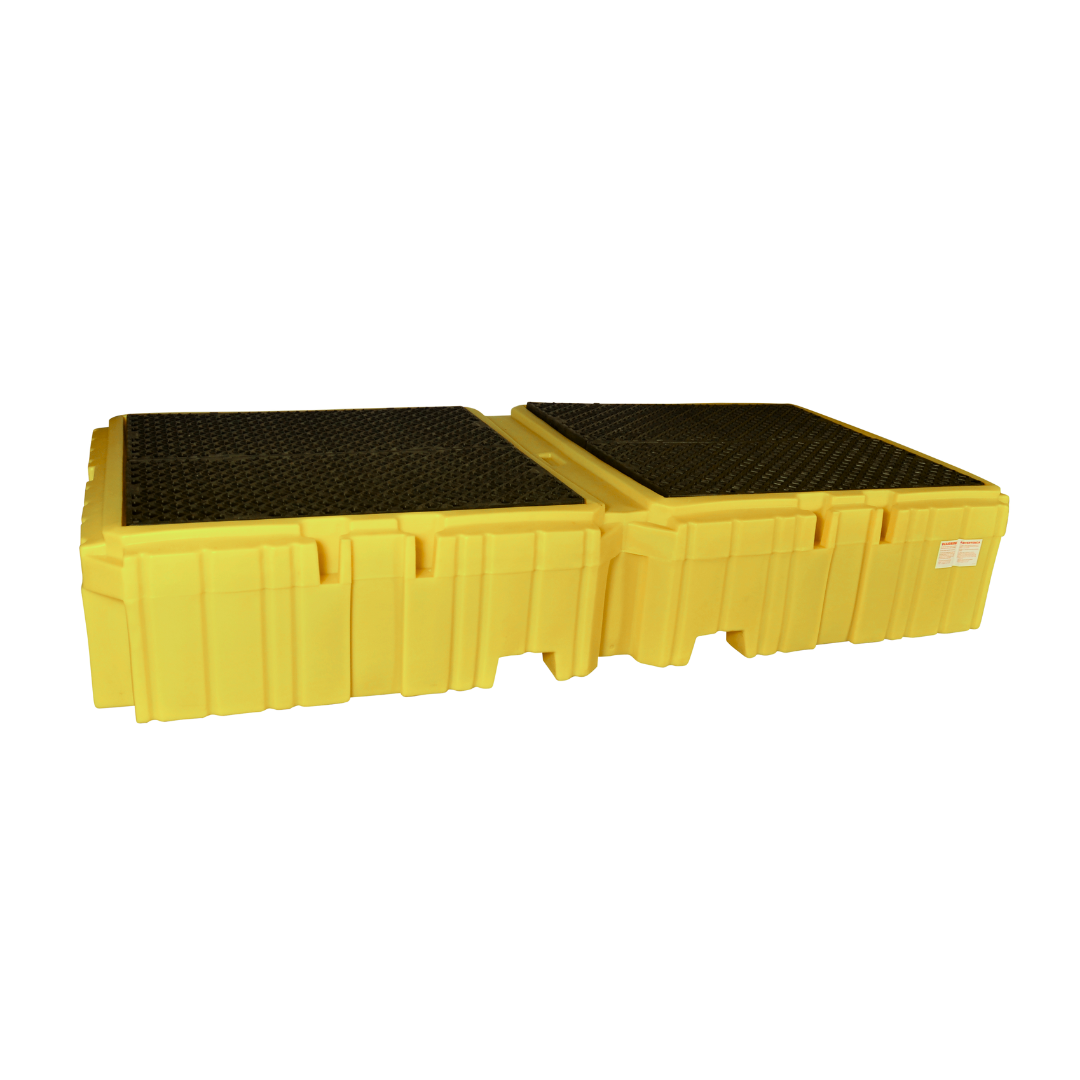

Ultra-Twin IBC Spill Pallet
Original price was: $5,163.07.$4,130.46Current price is: $4,130.46. (inc. GST)
Description

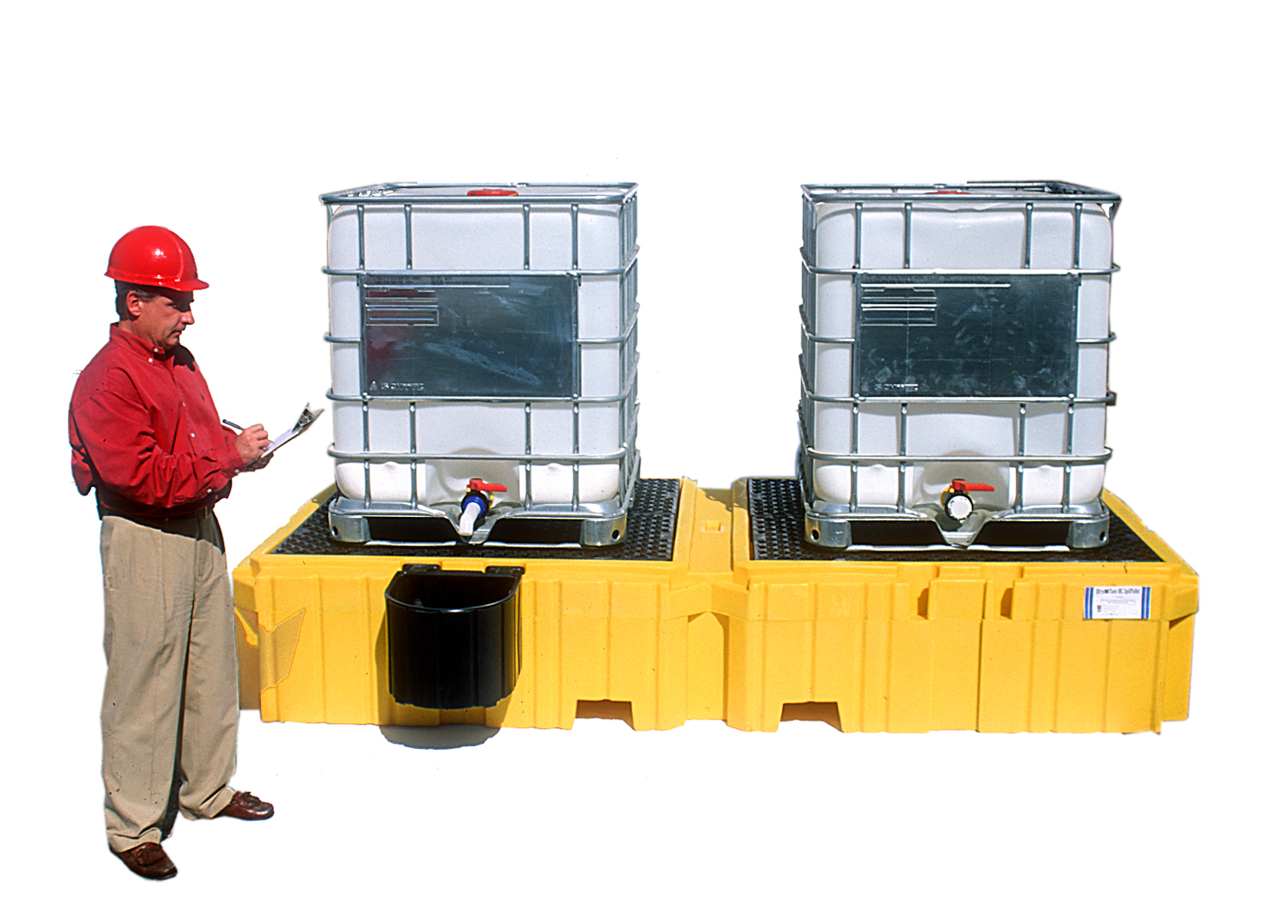

The Ultra-Twin IBC Spill Pallet is a reliable, heavy-duty solution for storing two IBCs side-by-side. Its all-polyethylene construction offers excellent chemical resistance, while the large sump and optional accessories support safe, compliant, and efficient spill containment.
Key Features
- Versatile Use: Suitable for IBCs, drums, or other large containers, provided contents are chemically compatible.
- Heavy-Duty Capacity: Each side supports up to 3,628 kg (UDL), ideal for heavy industrial use.
- Large Containment Sump: Single continuous sump holds up to 2,025 litres, meeting spill compliance requirements.
- Optional Bucket Shelf: Attach to one or both sides to capture drips and small leaks during dispensing.
- Easy to Clean: Removable grates make maintenance and clean-up simple.
- Chemical Resistant: All-poly construction withstands a wide range of aggressive substances.
Applications
- Industrial Sites: For safe storage of hazardous liquids in manufacturing or chemical facilities.
- Warehouses: Helps maintain compliance and safety when storing IBCs and drums.
- Environmental Services: Used in handling and storing dangerous goods during transport or clean-up.
- Construction Projects: Keeps oils, fuels, and chemicals contained on-site.
| PRODUCT CODE | DESCRIPTION | LENGTH (mm) | WIDTH (mm) | HEIGHT (mm) | WEIGHT CAPACITY (kg) | CONTAINMENT CAPACITY (L) | WEIGHT (kg) |
| CHU1140 | IBC Spill Pallet Twin, No Drain | 3162 | 1565 | 558 | 3628 | 2025 | 160 |
| CHU1144 | IBC Spill Pallet Twin, With Drain | 3162 | 1565 | 558 | 3628 | 2025 | 160 |
Warranty:
- Covered by the Best Warranty in the Industry: Enjoy peace of mind with our five-year warranty that protects against any material or workmanship defect
Frequently Asked Questions:
- Can the Ultra-Twin IBC sump be taken apart for shipping/storage? Each side has two removable grates. The sump, however, is one piece and cannot be disassembled.
- Is the sump continuous or is it two separate compartments? The 2025 litre sump is continuous. In other words, a spill from one side will eventually make its way over to the other side. There is no barrier to separate the two sides. It is important to note that chemicals stored on the Ultra-Twin IBC Spill Pallet must be compatible.
- Why are there so many different options for bucket shelves? Bucket shelves use bulkhead fittings to return any spilled contents back into the sump. The bulkhead fittings are installed at the factory prior to shipping the unit out so we need to know where bucket shelf will be located. A shelf may be added later (after the unit has been received) but without the bulkhead fitting, any spillage will be “trapped” in the bottom of the shelf.
- Can I move the Ultra-Twin IBC Spill Pallet with IBCs on top? No. IBCs, tanks, totes, drums and other items must be removed from the pallet surface prior to moving it.

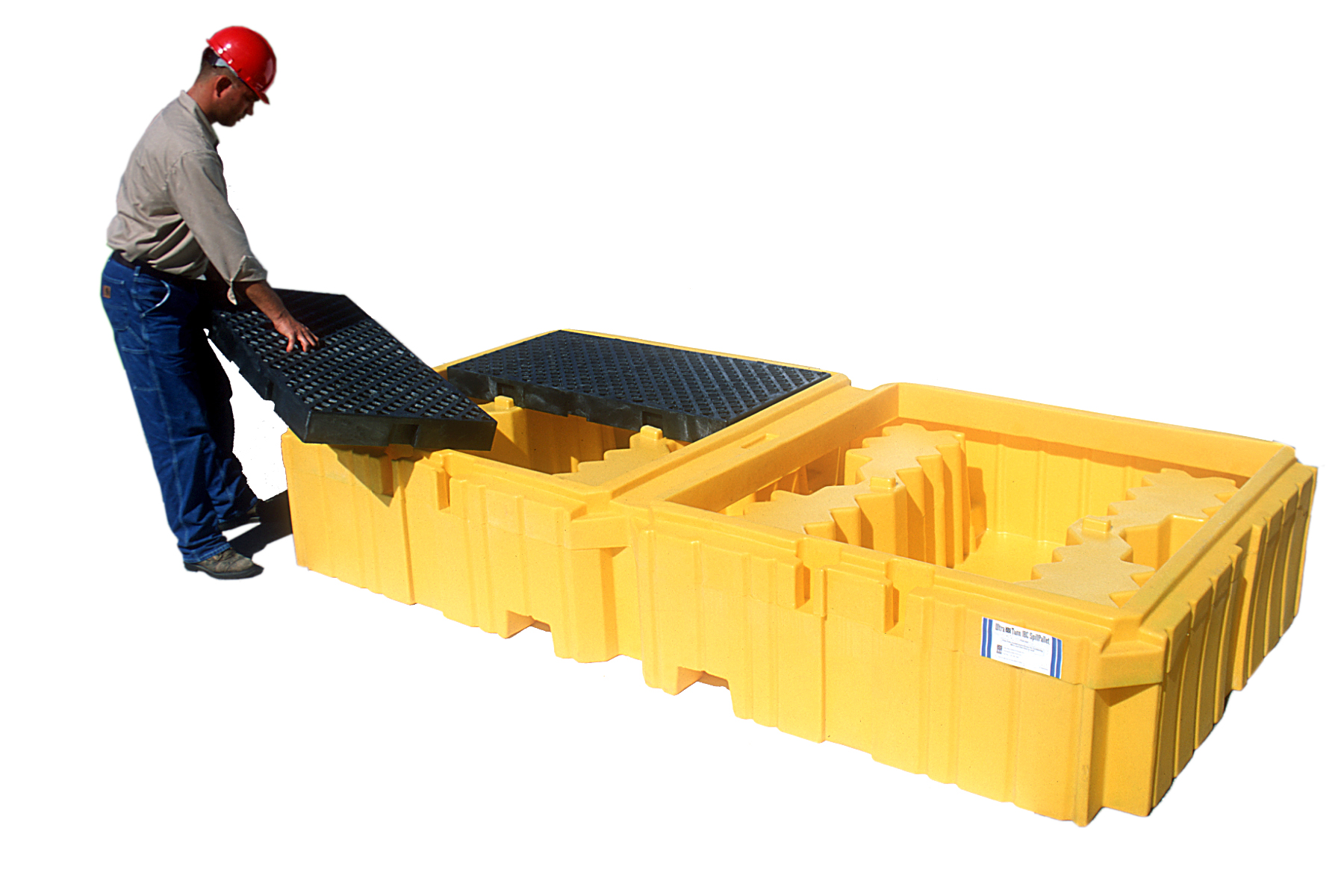

- What is the size of the grating that each IBC sits on? Each side of the Ultra-Twin IBC Spill Pallet has a usable surface that is 1320mm x 1320mm This surface comprised of two removable grates that are each 660mm x 1320mm.
- Can the Ultra-Twin IBC Spill Pallet support an IBC that has pedestal posts for legs, or just flat bottom IBCs? The pallet has a 3628 kg per side capacity. This is for uniformly distributed loads. An IBC that is supported by pedestal post or feet focuses all its weight on those feet. If the dimensions of those feet are not large enough to properly displace the weight on the spill pallet’s grating, it could be an issue. As a precaution, steel plates (at least 304mm x 304mm) can be used under the feet to more evenly distribute the weight over a greater area.
- What type of drain is used for these pallets? The standard drain is a threaded hole in the sidewall with a 19mm polyethylene plug with NPT threads installed.
