Ultra-Rack Containment Tray Sump

Price available upon request

  • Fast Dispatch
  • Click & Collect
  • Secure Payment

Description

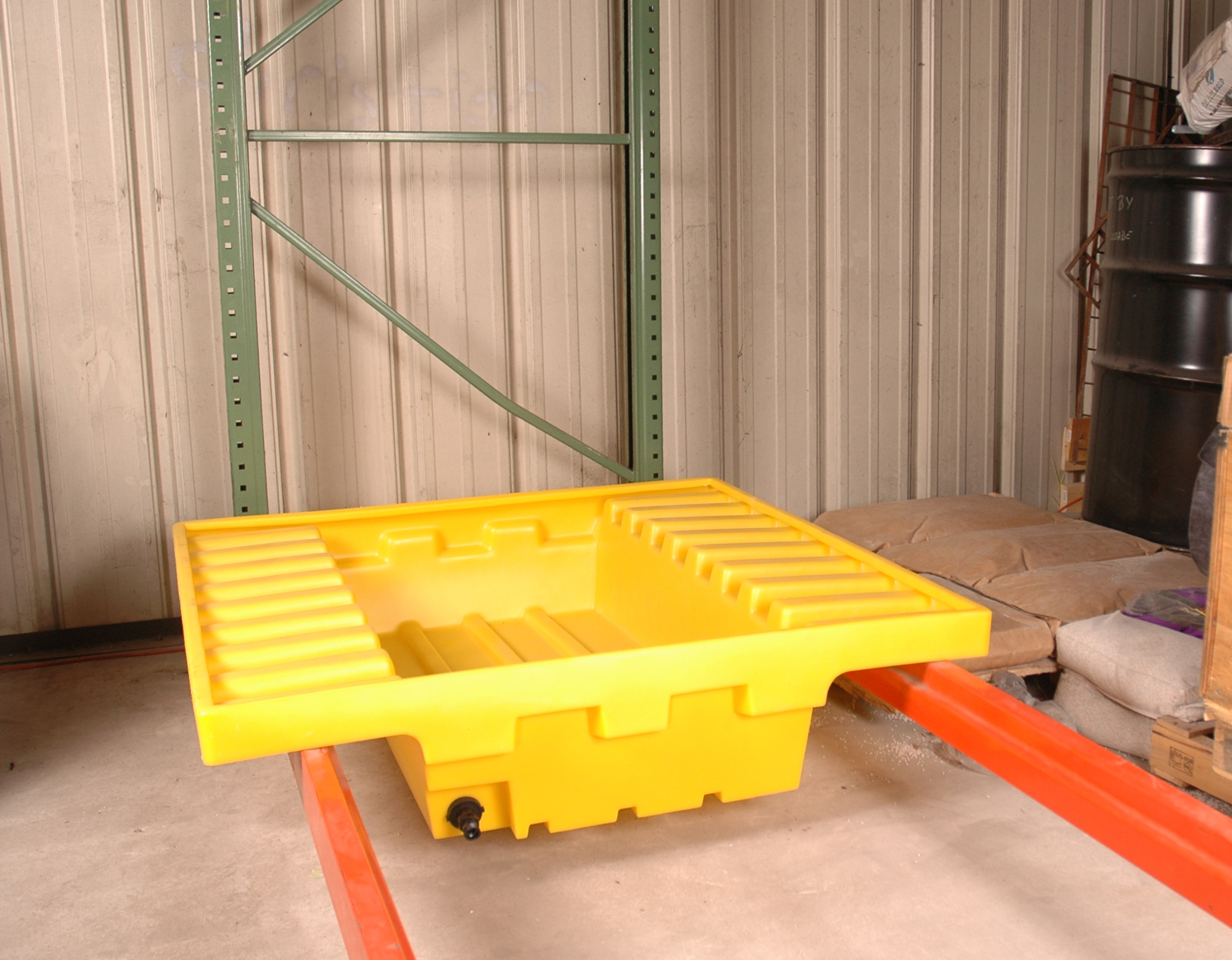

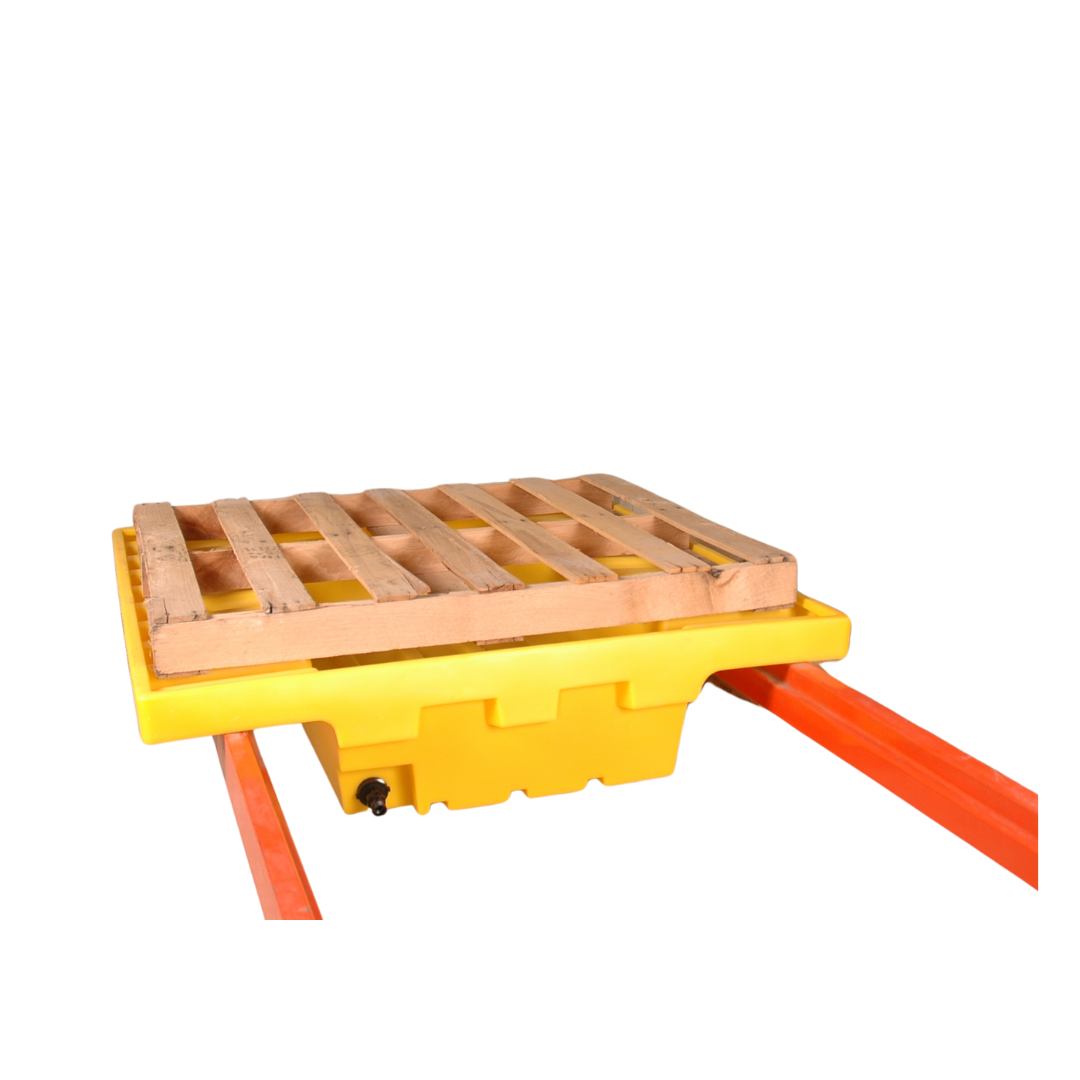

Ultra-Rack Containment Tray Sump for Spill Control on Pallet Racking

Storing drums on pallet racks helps maximise floor space in warehouses and industrial facilities, but leaks and drips can still occur. The Ultra-Rack Containment Tray Sump captures minor spills directly at the racking level, helping you maintain a cleaner and safer workspace.

This all-polyethylene sump offers a 250 litre capacity and fits standard industrial racking. It works with most wooden pallets and includes an optional drain valve for easy liquid removal.



Features:

  1. EPA compliant spill containment: The Ultra-Rack Containment Tray Sump meets EPA spill containment requirements, supporting environmental compliance.

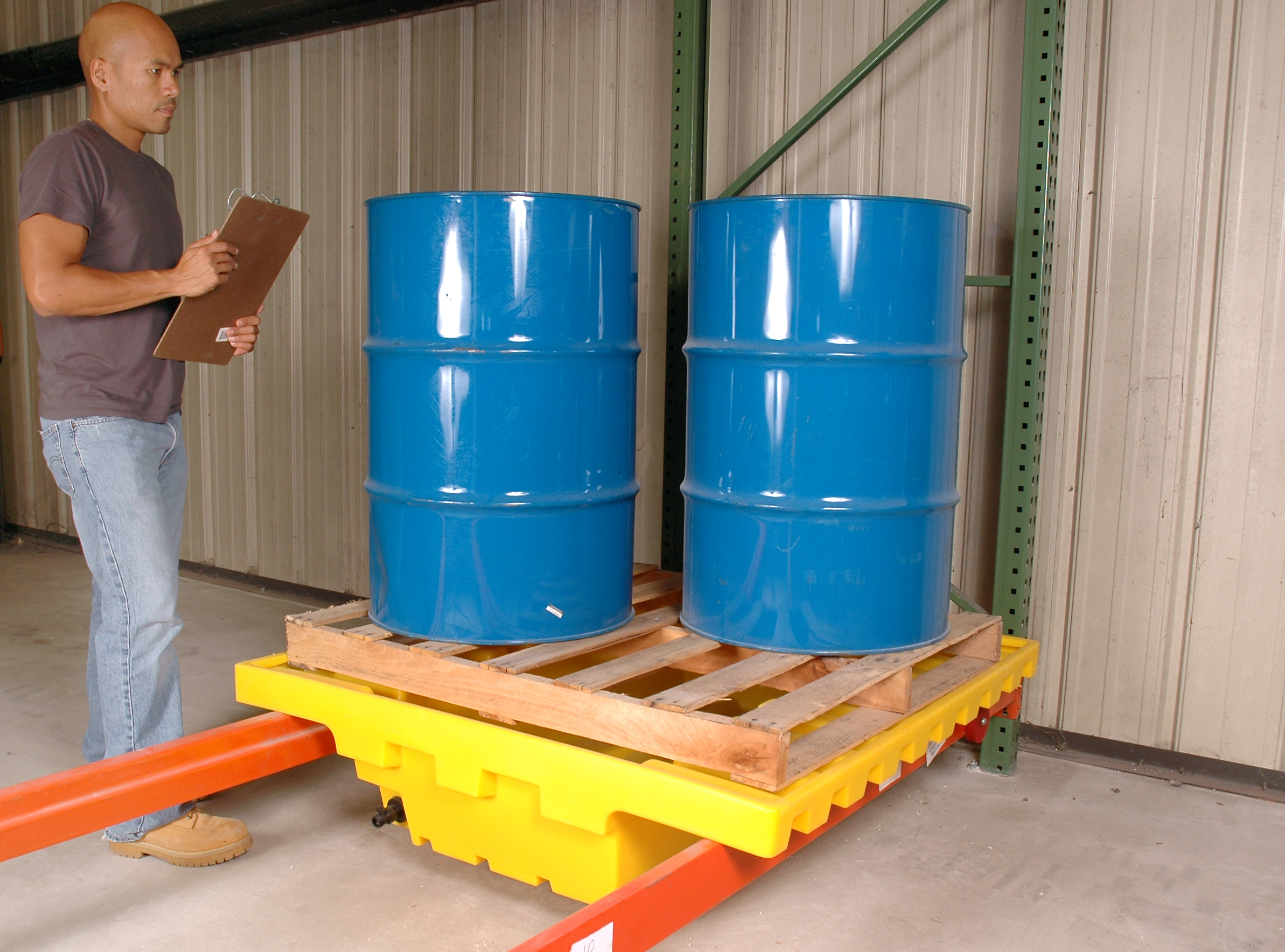

  2. High capacity storage : Use containment tray sump to support up to four 205 litre drums on a standard pallet while capturing leaks and drips.
  3. Low profile design: Install  into pallet racking without blocking access to nearby storage.
  4. Forklift-friendly access : Allow forklifts to load and remove pallets without moving the sump.
  5. Durable polyethylene construction: Resist rust, corrosion, and a wide range of chemicals.
  6. Quick visual inspection: Use the translucent yellow design to easily check for spills at floor level.
  7. Standard pallet compatibility: Fit common pallet sizes including 1016 mm x 1219 mm and 1219 mm x 1219 mm.
  8. Space saving nestable design: Stack units to reduce storage and freight space.

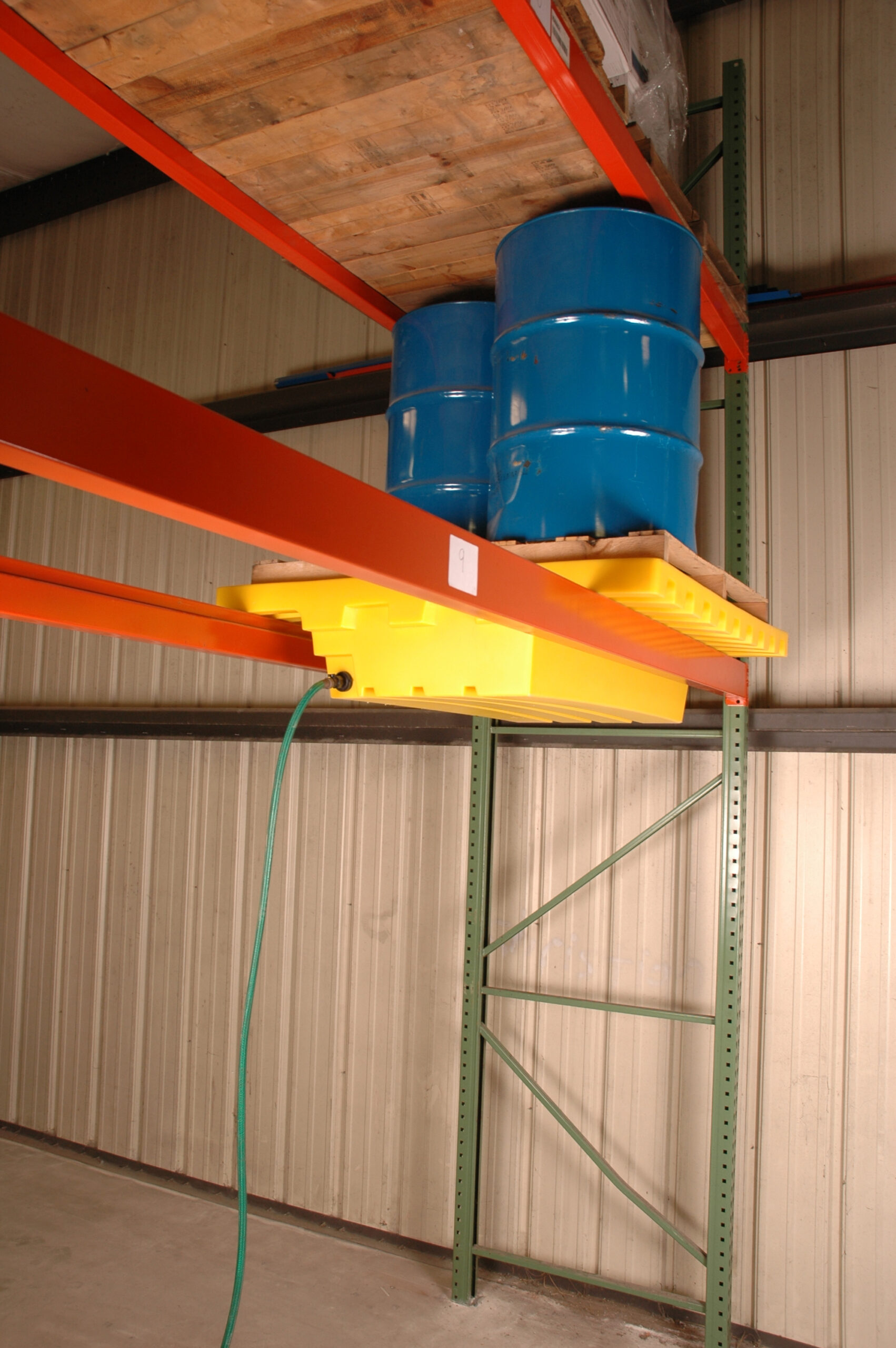

  9. Optional drain valve: Drain collected liquids easily using a 19 mm hose connection.



Applications

  • Warehousing and logistics: Use it to store drums safely on racking while managing leaks.
  • Manufacturing facilities: The Ultra-Rack Containment Tray Sump helps control spills from oils and chemicals at storage level.
  • Chemical storage areas: Improve compliance and reduce environmental risk.
  • Maintenance and workshops: Keep storage zones clean and reduce slip hazards with effective spill containment.



Warranty:

  • Covered by the Best Warranty in the Industry: Enjoy peace of mind with our five-year warranty that protects against any material or workmanship defects.

Downloads

FAQs

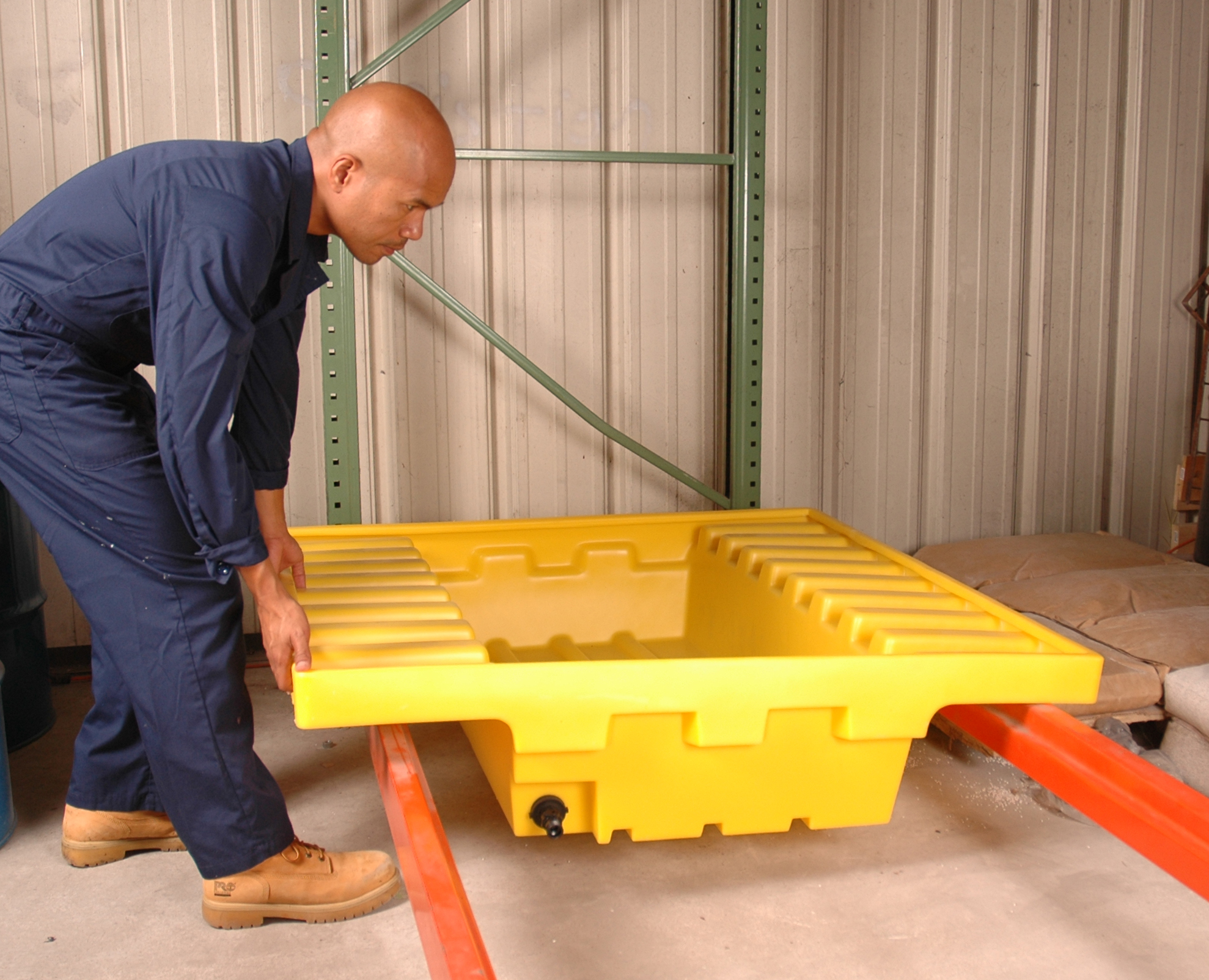

How do I get the Ultra-Rack Containment Tray Sump onto my racking?

The rack sump is heavy-duty and very sturdy, but only weighs 22.7kg so it should be fairly easy to maneuver and load onto the racking system. A forklift or other handling equipment may be necessary, depending on the location and height. Once the rack sump has been properly positioned, a standard wooden pallet loaded with the drums (up to four) can be placed on top.

What is the weight capacity of the Ultra-Rack Containment Tray Sump?

The weight capacity is determined by the weight that the racking system can handle as that will be handling the load of the rack sump and the drums.

What are the Ultra Rack Containment Tray Sumps made of?

The Ultra-Rack Containment Tray Sumps are made of 100% polyethylene (LLDPE) so they will not rust or corrode and will also provide excellent chemical resistance.

How do I drain spilled liquid out of the Ultra Rack Containment Tray Sump?

If you have the optional drain/ball valve assembly, simply connect a standard garden hose to it (make sure the other end is in an approved container) and then open the valve. If you do not have the optional drain/ball valve assembly, the process will be similar but will require a pump of some sort.

How many nested Ultra-Rack Containment Tray Sumps can ship on a single pallet?

Up to 10 Ultra-Rack Containment Sumps can ship on a single standard shipping pallet.
